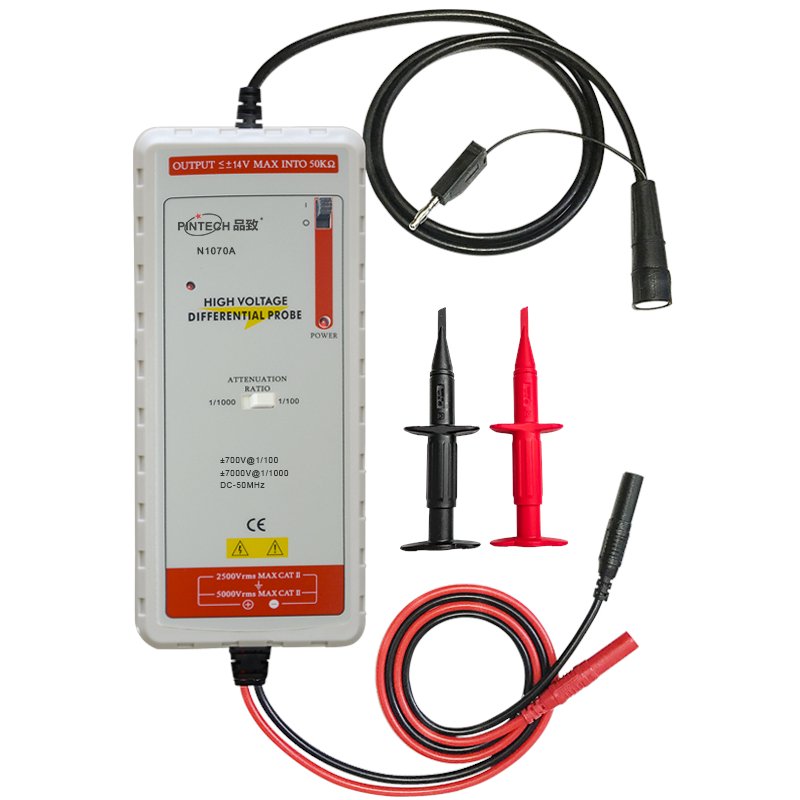

Pintech N1070A (7000Vp-p,50MHz) high accuracy differential probe

Bandwidth : 50MHz Max. measuring voltage : 7KVp-p Voltage overload protection Input impedance 10MO//2pF each side ground Compatible with any brand's oscilloscope. 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating. Battery & adaptor power supply.

Pintech N1070A Specification

Model	N1070A
Bandwidth	DC-50MHz
Error	±1%
Input impedance	10MO//2 p F each side ground
Output voltage
-Swing(into 50 KO load)	7V
-Offset(typical)	<±5Mv
-Input impedance(typical)	50O(for using 1M ohm input system oscilloscope)
Supply power
-external	power leads
BNC length	90cm
Test length	60cm
Weight	500g
Side (L×W×H)	245x84x36mm
Attenuation ratio	1:1000/100
CMRR(typical)	-80dB@60Hz,-50d B@100KHz
Maximum input differential voltage(Vp-p)	7000V@1/1000, 700V@1/100
DC + Peak AC(Vp-p)	7000V@1/1000 & 1/100
CMRR	1000V rms CAT?
