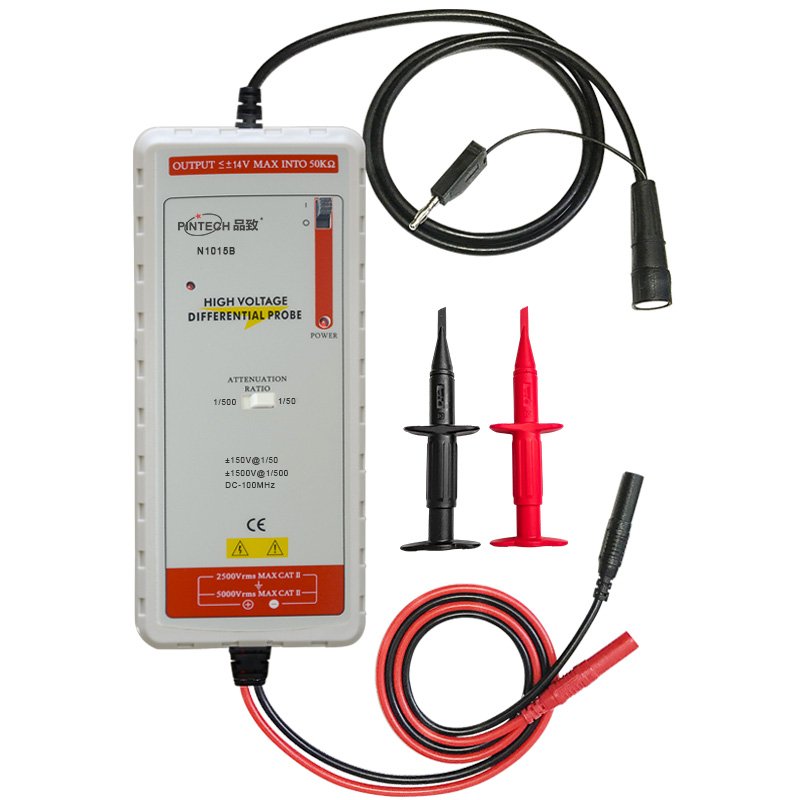

Pintech N1015B (100MHz,1500Vp-p) differential probe

Pintech N1015B



Frequency : DC - 100 MHz Max.voltage : 1500Vp-p Humanized design Compatible with any brand's oscilloscope. 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating. Battery & adaptor power supply.

Pintech N1015B Specification

N1015B (1500Vp-p,100MHz) Specification
Bandwidth DC-100MHz
Accuracy 1%
Input Impedance 4MO//2 p F each side ground
Input Voltage
Swing(into 50 KO load) 7V
Offset(typical) <5Mv
Typical 50O(for using 1M ohm input system oscilloscope)
Power Supply
Options power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
Attenuation Ratio 1:500/50
CMRR(typical) -80dB@60Hz,-50d B@100KHz
Max. input differential-mode voltage(Vp-p) 1500V@1/500150V@1/50
Max. input and ground potential differenc(Vp-p) 1500V@1/500 & 1/50
(CMRR) CATII 1000V,CAT? 600V
