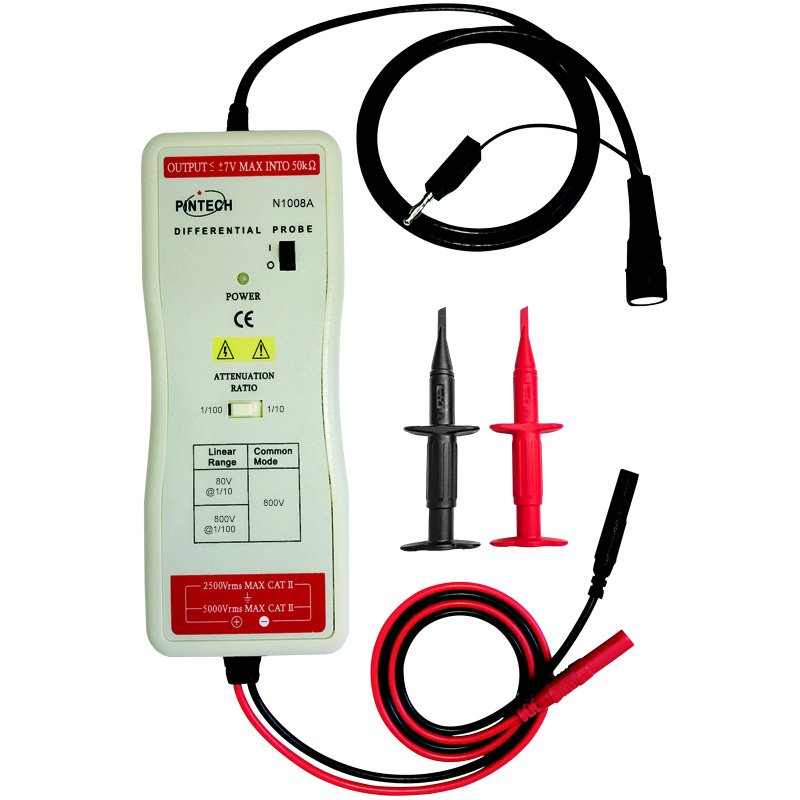

Pintech N1008A (800Vp-p,50MHz) differential probe 1% accuracy

Pintech N1008A



Bandwidth 50MHz Voltage overload protection Input impedance 2MO//2.5pF each side ground 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.

Pintech N1008A Specification

Model N1008A
Product Name N1008A (800Vp-p,50MHz)
Short Description PINTECH N1008A(50MHz X100 X10 800Vp-p)
Bandwidth DC-50MHz
Accuracy ±1%
In put Impedance 2MO//2.5 p F each side ground
Input Voltage
-Swing(into 50 KO load) 7V
-Offset(typical) <±5Mv
-(typical) 50O(for using 1M ohm input system oscilloscope)
Power Supply
Options power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
Attenuation Ratio 1:100/10
CMRR(typical) -80dB@60Hz,-50d B@100KHz
Max. input differential-mode voltage(Vp-p) 800V@1/100, 80V@1/10
Max. input and ground potential differential voltage(Vp-p) 800V@1/100 & 1/10
(CMRR) CATII 1000V,CAT? 600V
