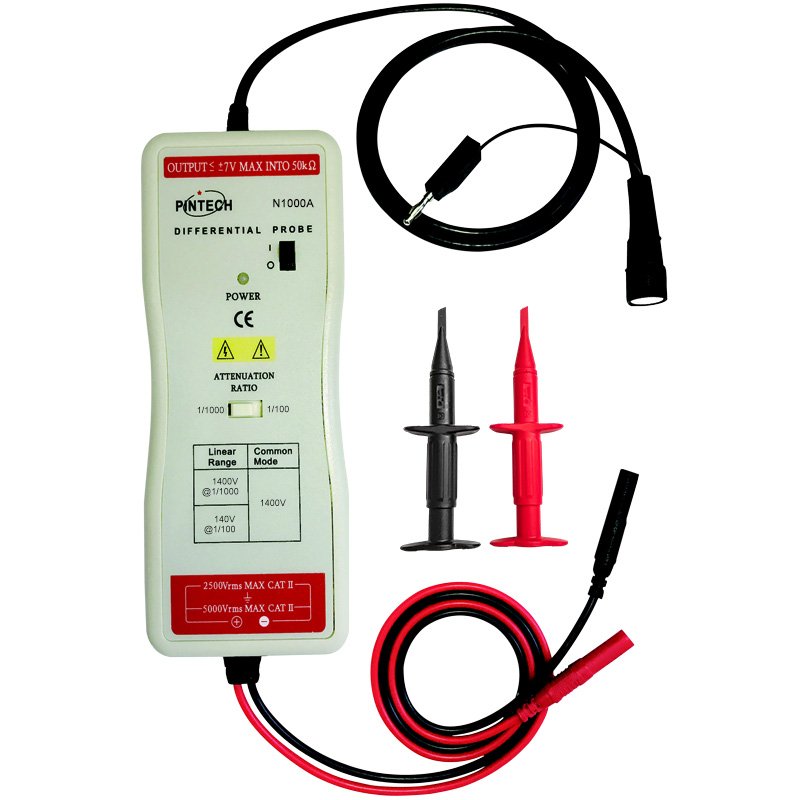

Pintech N1000A (50MHz,1500Vp-p) differential probe - 1% accuracy

Pintech N1000A



Bandwidth : 50MHz Max. measuring voltage : 1500Vp-p Attenuation ratio : 1000 : 1,100 : 1 Super small type Humanized design 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.

Pintech N1000A Specification

Product Introduction
Product N1000A (1500Vp-p,50MHz)
Short Description PINTECH N1000A(50MHz X100 X1000 1500Vp-p)
specification
Bandwidth DC-50MHz
Accuracy 1%
Input Impedance 4MO//2 p F each side ground
Input Voltage
-Swing(into 50 KO load) 7V
-Offset(typical) <5Mv
Typical 50O(for using 1M ohm input system oscilloscope)
Power Supply
-Options power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
Attenuation Ratio 1:1000/100
CMRR(typical) -80dB@60Hz,-50d B@100KHz
Max. input differential-mode voltage(Vp-p) 1500V@1/1000, 150V@1/100
Maximum input and ground potential difference(Vp-p) 1500V@1/1000 & 1/100
CMRR CATII 1000V,CAT? 600V
