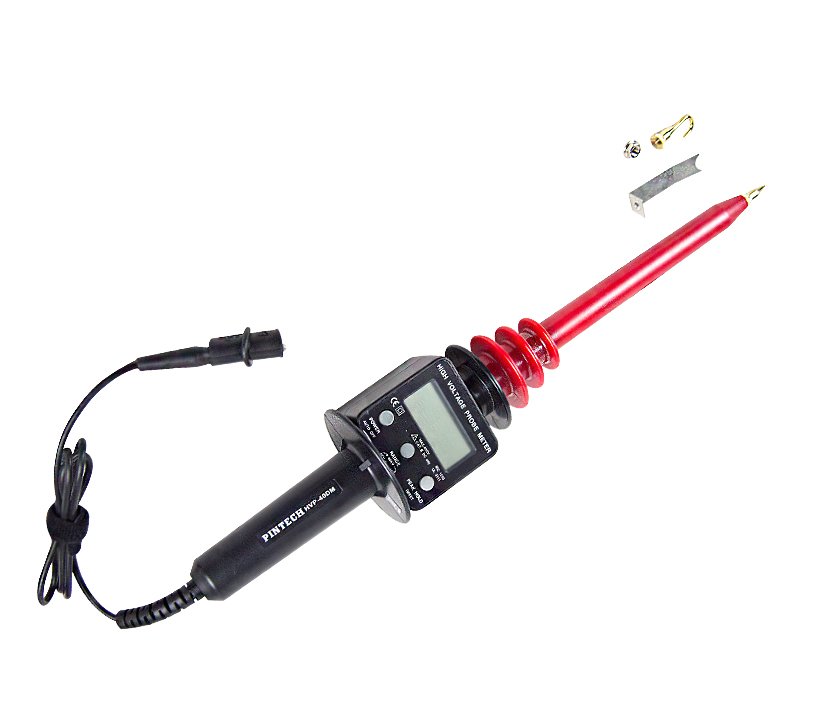

Pintech HVP-40DM High Voltage Probe/high voltage DC voltage meter

Pintech HVP-40DM



HVP-40DM High Voltage Probe/high voltage DC voltage meter Short Description : DC 40KV CAT II Pollution 2 600MO Impedance 25KV 2%, 40KV 3%

Pintech HVP-40DM Specification

Input Resistance 2000M?
Maximum operation voltage 40KV DC , CAT II , Pollution 2
LCD 3999 digital display LCD
Accuracy ? 1.0% 2 (All Range)
Temperature Coefficient ? 100ppm / ?
Maximum loading Current ? 20A
Maximum loading power ? 0.8 watt
Range 40KV / 4KV / 400V / Have 3 Range
Resolution 10V / 1V / 0.1V / Have 3 Range
Power 9V battery; 9V / 006P, IEC6L R1, NEDA 1604A
Battery life About 200hours (when use alkaline battery )
Automatic close-down function About 30minutes
Peak value locking time ? 400 ms
Ambient operating Humidity 0? ~ + 50?
Ambient stroge Humidity - 20? ~ + 70?
Cable length 90 centimetre ( 35 " )
Size 420 (L) x 80F mm
Weight 360g
