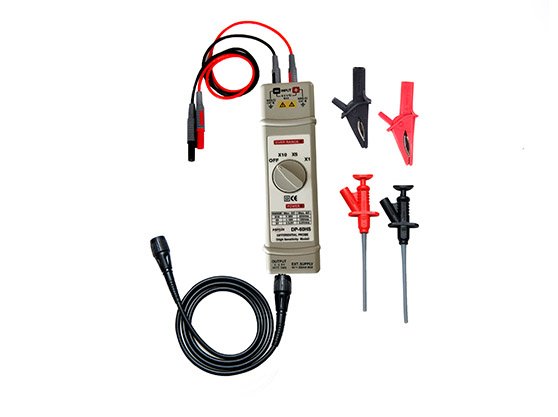

Pintech DP-60HS (60MHz,70V) low voltage differential probe

Pintech DP-60HS



DP-60HS (60MHz,70Vp-p) Differential Probe Low Voltage high sensity Model Voltage range : 10mV~650 Vp-p Bandwidth : 60MHz 3 Range : x1, x5, x10

Pintech DP-60HS Specification

Model DP-60HS
Bandwidth DC-60MHz
Division Ratio X1,X5,X10
Accuracy ±2%(Heat the machine for twenty minutes)
Input voltage Range When X1,=3.5V DC,7Vp-p
When X5,=18V DC,36Vp-p
When X10,=35V DC,70Vp-p
Differential range 70Vp-p
Absolute max. voltage(CMRR) 60Hz:>10,000:1
100Hz:>1000:1
1MHz:>300:1
Noise =1.0mVrms
Input resistance(Impedance) 1MO//2.5PF
Max. Consumption 9V/35mA
Fitting BP-250,BP-256N,BP-276,BP-366,ADP-220
