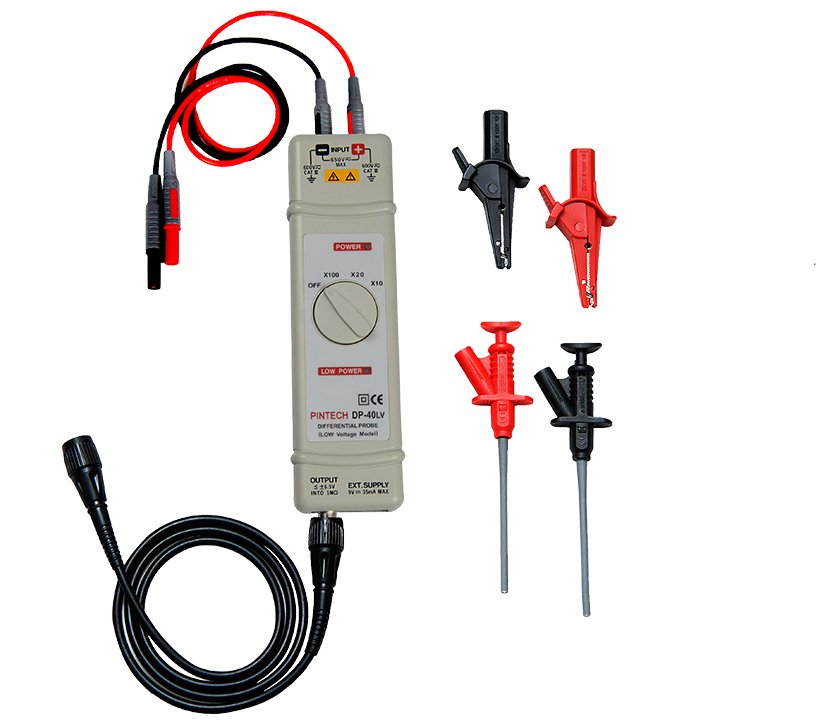

Pintech DP-40LV (40MHz, 650V) active differential probe

Pintech DP-40LV



DP-40LV (40MHZ,650V) Low Voltage Model Voltage range : 10mV~650 Vp-p Bandwidth : 40MHz . 3 Range : x10/ x20/ x100

Pintech DP-40LV Specification

Model DP-40LV
Bandwidth DC-40MHz
Division Ratio X10,X20,X100
Accuracy 2%( heat the machine after twenty minutes )
Input voltage Range When X10,=65V
When X20,=130V
When X100,=650V
Differential range 650Vp-p
Absolute max. voltage(CMRR) 60Hz:>20000:1
100Hz:>2000:1
1MHz:>600:1
Noise =0.7mVrms
Input resistance(Impedance) 2MO//1.7PF
Max. Consumption 9V/35mA
Fitting BP-250,BP-256N,BP-276,BP-366,ADP-220
