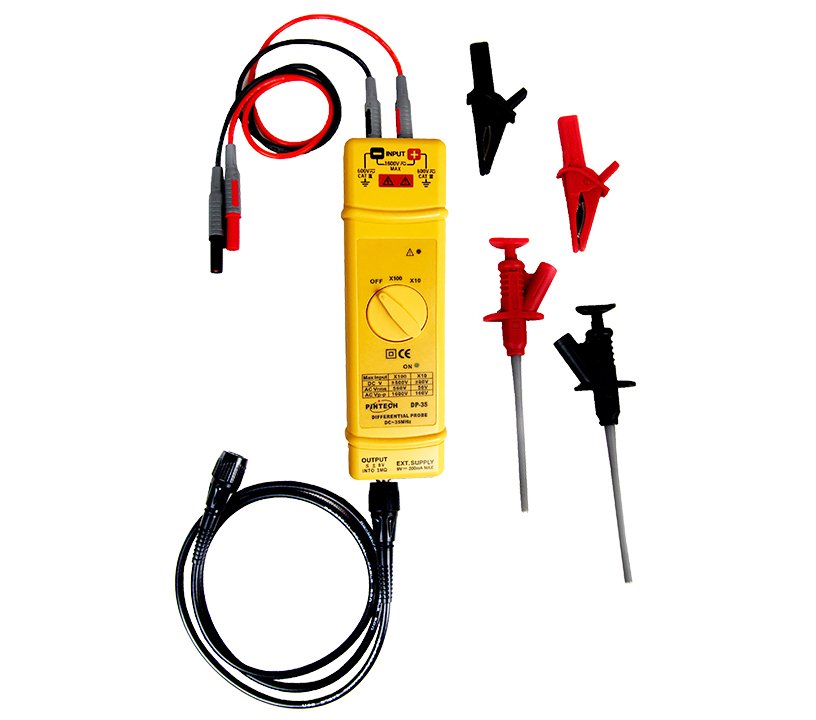

Pintech DP-35 (35MHz ,1600V) differential probe

Pintech DP-35



Bandwidth : 35MHZ Max. measuring voltage : 1600 (Vp-p) Attenuation ratio : X10 X100 Accuracy : 2%

Pintech DP-35 Specification

FUNCTION / MODEL DP-35
Bandwidth (50O load -3dB) DC-35MHz(25MHz at x10)
Attenuation (Switchable) X10, X100
Accuracy (at 20~30? 70%RH after 20 minutes) ? ± 2%
Maximum Operation Voltage(DC+ AC peak to peak) ? 160V at x 10 ? 1600V at x 100
Common Mode Voltage DC + AC peak to peak 1600V
Common Mode Rejection Ratio(CMRR) 60 Hz: > 10000 : 1 100 Hz: > 1000 :1 1MHz: > 300 : 1
Noise (Into 50O Load) ? 1.0m Vrms
Input Impedance (Between Input) 9MO // 1.7 PF
Consumption 200 mA about (9 V DC)
Dimensions 195 x 55 x 30 mm
Weight 250g
Other BP-250,BP-365N,BP-256N,BP-276N,
