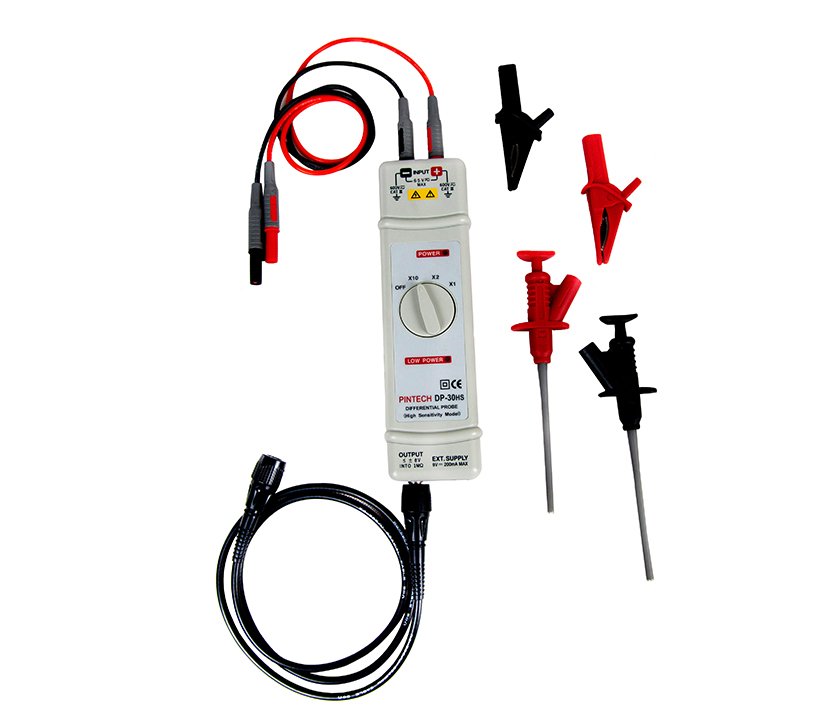

Pintech DP-30HS (30MHz,65V) low voltage differential probe

Pintech DP-30HS



DP-30HS (30MHZ 65V) active differential probe Bandwidth : 30MHZ Max. measuring voltage : 65 (Vp-p) Attenuation ratio:X1 X2 X10 Accuracy:2%

Pintech DP-30HS Specification

Model DP-30HS
Bandwidth DC-30MHz
Attenuation ratio X1,X2,X10
Accuracy 2%(after heating the machine for 20 mins)
Ma. input voltage(Vp-p) X1=6.5V
X2=13V
X10=65V
Max. input differential voltage(Vp-p) 65V
CMRR 60Hz:>10,000:1
100Hz:>1000:1
1MHz:>300:1
Noise =1.0mVrms
input Impedance 2MO//1.7PF
Max. consume 9V/35Ma
Accossories BP-250,BP-256N,BP-276,BP-366,ADP-220
