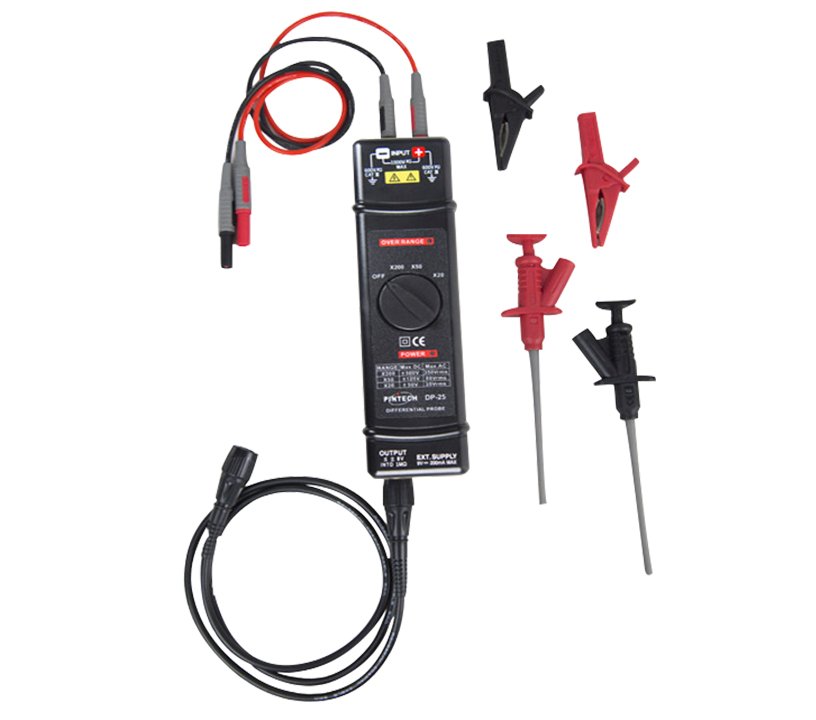

Pintech DP-25 (25MHZ,1400Vp-p) low voltage differential probe

Pintech DP-25



DP-25 (25MHZ, 1400V) low voltage differential probe Bandwidth : 25MHz Attenuation ratio : x20 x50 x200 Max. measuring voltage:1400Vp-p accuracy:2% Warranty : 1 year Classical model,hot sell item.

Pintech DP-25 Specification

Model DP-25
Bandwidth DC-25MHz
Division Ratio X20,X50,X200
Accuracy 2%(heat the machine for twenty minutes)
Input voltage range When X20,=70VDC,140Vp-p AC
When X50,=175V DC,350Vp-p AC
When X200,=700V DC,1400Vp-p AC
Differential range 1400Vp-p
Absolute max. voltage(CMRR) 60Hz:>20000:1
100Hz:>1000:1
1MHz:>300:1
Noise =2.0mVrms
Input resistance(Impedance) 4MO//1.2PF
Max. Consumption 9V/35mA
volume 210mm(L)X58mm(W)X30mm(H)
Weight 200g
fitting BP-250,BP-256N,BP-276,BP-366,ADP-220
