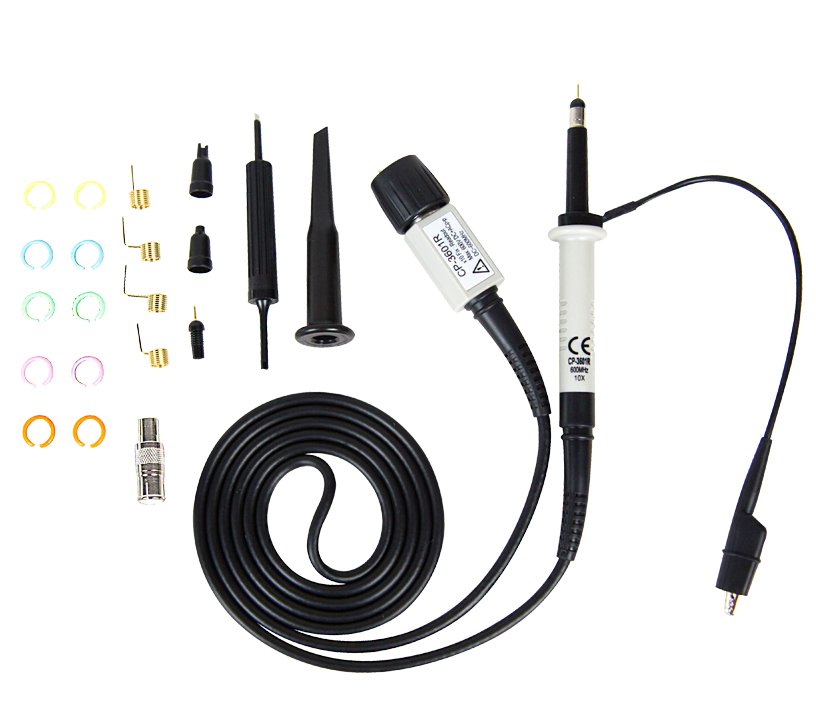

Pintech CP-3601R (600MHz,600V) Oscilloscope Probe

Pintech CP-3601R



Product Introduction
Product Name : CP-3601R (600MHz,600V) Oscilloscope Probe Short Description : Bandwidth : DC~600MHz Fix x10; Readout Function EN61010-031, 600V CAT I

Pintech CP-3601R Specification

Model CP-3601R
Bandwidth DC~600MHz
Readout Function Yes
Rise Time 0.58ns
Attenuation Ratio 10:1(0.5% at DC)
Input Impedance When used with oscilloscope which have 10 MO input
Input Capacitor Approx. 12PF
Compensation Range 6PF~22PF
Max. Input Voltage 600V CAT I ;
Operating Temperature 0?~50?
Humidity 85%RH or less (at 35?)
Safety Meets EN61010-031 CAT II
Cable Length 1.2m
