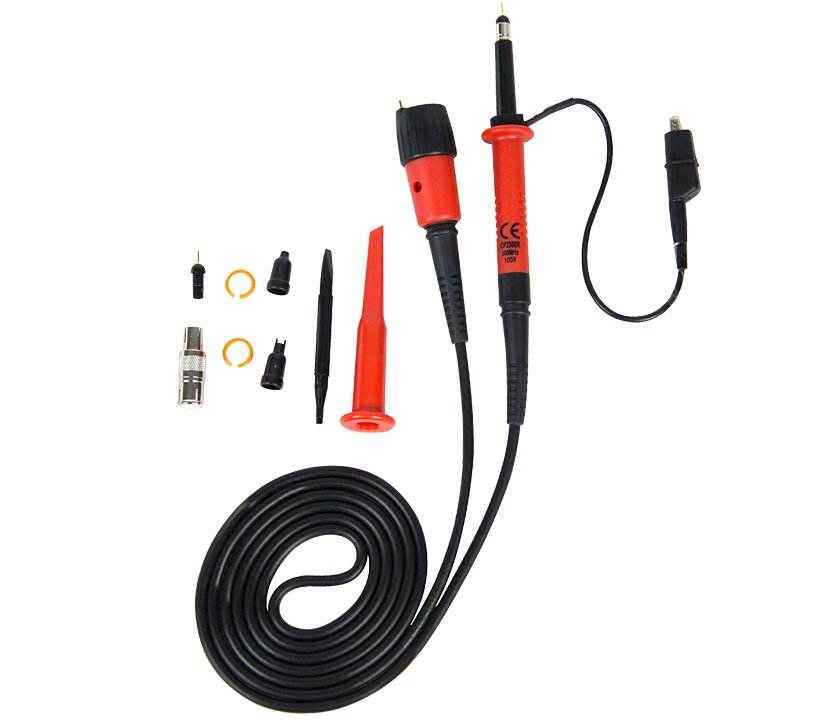

Pintech CP-3308R (300MHz,2000V) Oscilloscope Probe

Pintech CP-3308R

Product Introduction
Product Name : CP-3308R (300MHz,2000V) Oscilloscope Probe Short Description : 100 : 1 scope probe Bandwidth : 300MHz Read out Function Division Ratio x 100

Pintech CP-3308R Specification

Max. Operating voltage CAT I 2000V(DC+AC)CAT II 1500Vrms (DC+AC)
Bandwidth DC~300MHz
Division Ratio X100
Rise Time 1.2nS
Input Resistance 100MO
Input Capacitor 5.5PF
Compensation Range 10~35PF
Cable Length About 1.35 meters
Temp. Coefficient ?200ppm/?
DC Accuracy <1%
Operating Temp.xt" -->
Storage Temp. -20~+70?
weight 93 GM
