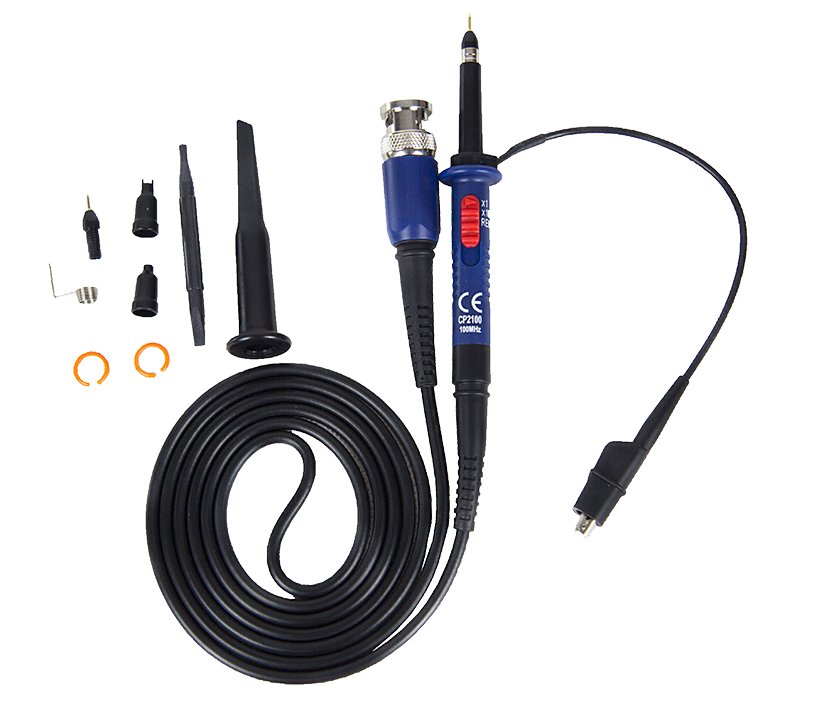

Pintech CP-2100 (100MHz,600V) Oscilloscope Probe

Pintech CP-2100



Product Introduction
Product Name : CP-2100 (100MHz,600V) Oscilloscope Probe Short Description : Working Voltage : 400V dc 600V peak 200Vrms Bandwidth : 100MHZ Division Ratio : X 1 , X 10

Pintech CP-2100 Specification

х10 Range
Model CP-2100
Division Ratio 10:1
Band Width DC~100MHz
Rise Time 3.5nS
Input Resistance 10MΩ
Input Capacitor about 16PF
Compensation Range 10~35PF
Operating voltage 600V DC+AC peak
х1 Range
Division Ratio 1:1
Band Width DC~6MHz
Rise Time 58nS
Input Resistance 1MΩ
Input Capacitor About 55PF
Operating Voltage 300V DC+AC peak
General
DC Accuracy ≦1%
Temp.Coeicient ≦200ppm/℃
Cable Length 1.2M
Operating voltage 0℃~+50℃ or less 85%RH(35℃)
Storage Temp. -20℃~+70℃ or less 90%RH
wight 87g
