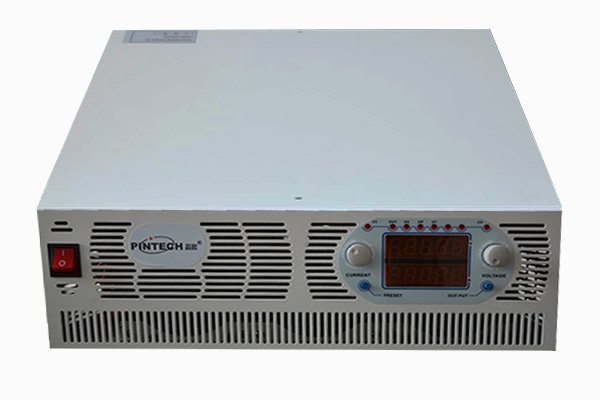

Pintech High power PA series DC power supply

Pintech PA series



DC power supply with high power PA series digital DC power supply is controlled by High-performance chip,using IGBT module adjustment mode,its high-performance, high-precision, high stability,equipped with a variety of auxiliary functions, makes it more convenient and reliable. It mainly use in scientific research units, laboratories and electronic production lines, for efficient power test. Its adjustable DC power supply, high-frequency switching power supply, precision Test power supply, digital DC constant voltage power supply, DC power supply.

Pintech PA series Specification

Model PA10500 PA20300 PA30200A PA30250 PA50120 PA-6100 PA20030
DC output Voltage 0-10V 0-20V 0-30V 0-30V 0-50V 0-60V 0-200V
Current 0-500A 0-300A 0-200A 0-250A 0-120A 0-100A 0-30A
Ripple and accuracy Ripple 0.5%+10mV 0.3%+10mV
Accuracy Voltage:0.3%+10mVCurrent:0.3%+10mA Voltage:0.2%+10mV Current::0.3%+10mA
Model PA30020 PA60010 PA10005 PA15500 PA60150 PA90100 PA15060
DC output Voltage 0-300V 0-600V 0-1000V 0-15V 0-60V 0-90V 0-150V
Current 0-20A 0-10A 0-5A 0-500A 0-150A 0-100A 0-60A
Ripple and accuracy Ripple 0.3%+10mV
Accuracy Voltage:0.2%+10mV Current:0.3%+10mA
Model PA20045 PA30030 PA60015 PA10008 PA20003 PA30002
DC output Voltage 0-200V 0-300V 0-600V 0-1000V 0-2000V 0-3000V
Current 0-45A 0-30A 0-15A 0-8A 0-3A 0-2A
Ripple and accuracy Ripple 0.3%+10mV
Accuracy Voltage:0.2%+10mV Current:0.3%+10mA
A type B type
AC INPUT 7.5KW lower than 220V10%/7.5KW higher than 380V10%
Output display 4 digit table Accuracy:1% +1 bytes LCD display Accuracy:1% +1bytes
Power, Resistance display
Display format:00.00V-99.99V;000.0V-999.9V;0000V-9999V;0.000V-9.999V
Panel locking function Panel locking
Voltage setting and preset 10-Ring Potentiometer/Rotary Encoder Rotary Encoder
Current setting and preset 10-Ring Potentiometer/Rotary Encoder Rotary Encoder
Over voltage protection Adjustable protection value at rated 0-10% , turn off output after protection, reboot when unlock Setting over voltage protection
Over current protection Overload, short-circuit, fixed current output Setting over current protection
Temperature protection Built-in O.T.P protection, protection value is 85?5% (heatsink temperature), turn off the output after protection
Output and heat dissipation Output positive(+),negative (-)can be arbitrarily grounded; heat dissipation method: Forced air cooling
Temperature environment Operation environment:0?~40?;Humidity:10%~85%RH;Storage environment:temperature:-20?~70?;Humidity:10%~90%RH
