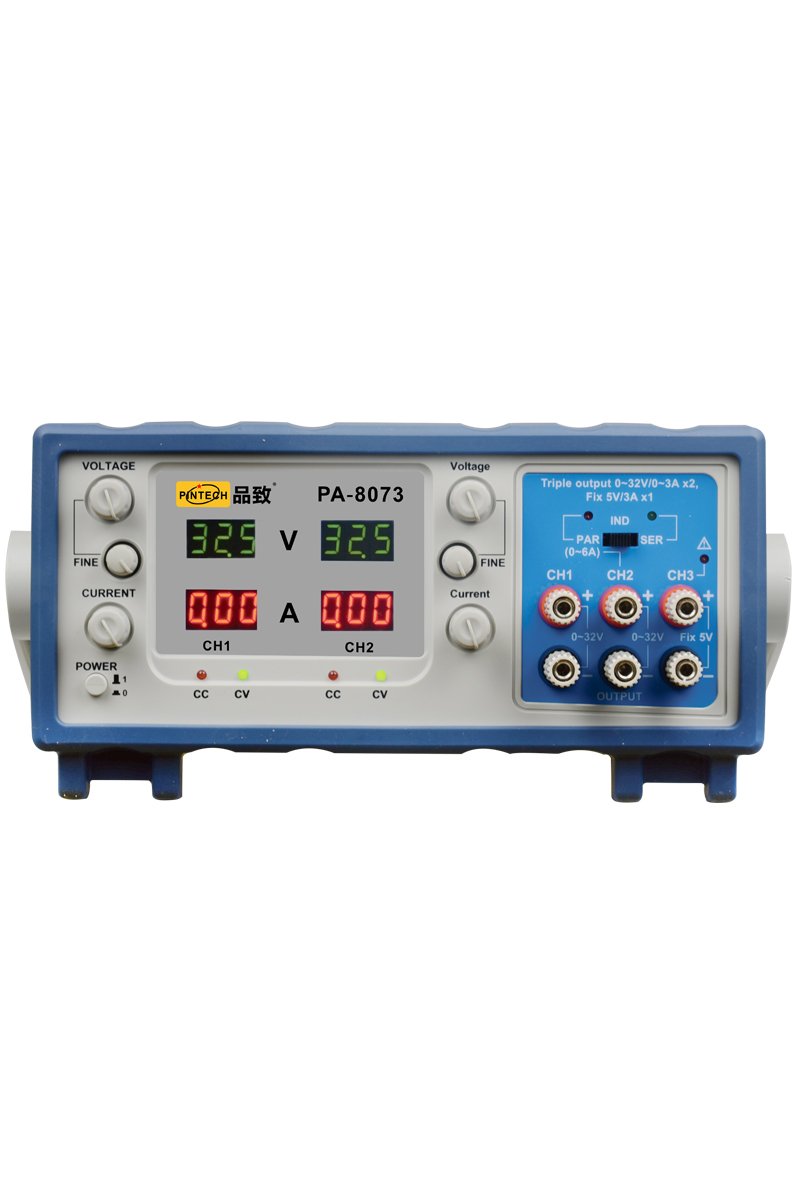

Pintech Triple output DC power supply PA-8073 ( DC 0~32v/3A x2 + 5V/3A )
|
Portable type, small size design
Overload protection
3 sets output : 0~32V/0~3A x 2 + 5V/3A
Parallel : 0~64V/0~3A or + 32V ~ -32V/0~3A
Series : 0~32V/0~6A
3 digits, 4 sets LED display, Green is display for voltage, Red is display for current, easy to read, no mistakes.
|
|
Pintech PA-8073 Specification
Model | PA-8073 | Power Transformer | E.I Type Transformer | Max. Continual Output Power | 207VA | Max. Raised Temperature | < 45°C | Independent Output | 0~32V/0~3A x 2, 5V Fixed / 0~3A | Constant Voltage Characteristic | Regulation | Line <0.01%+3mV, Load <0.01%+5mv | Ripple & Noise | < 0.4mVrms | Temperature coefficient | < 300PPM/°C | Constant Current Characteristic | Regulation | Line <0.2%+2mA, Load <0.2%+3mA | Ripple & Noise | < 2.5mArms | | 5V Fixed Output | Regulation | Line < 5mV,Load <10mV | Ripple & Noise | < 1.5mVrms | Voltage Accuracy | 5V ± 0.25V | Max. Output Current | 3A | | Tracking Operation | Parallel Regulation | Line < 0.01%+3mV, Load < 0.01+5mV | Series+and-Supply Regulation | Line < 0.01%+3mV, Load < 0.01+5mV Slave tracking error <0.5%+digital of the master 2 | Series Single Supply Regulation | Line <0.01%+5mA,Load <300mV | | Display | Voltage | 3 Digits 0.36" Green LED | Current | 3Digits 0.36" Red LED | Accuracy | 0.1% + 2? | | General | Power source | ACV 115/230 ± 10%, 50/60Hz | Dimension ( W x H x D): | 255 x 120 x 380 mm | Weight | 7.9kg |
|
|
