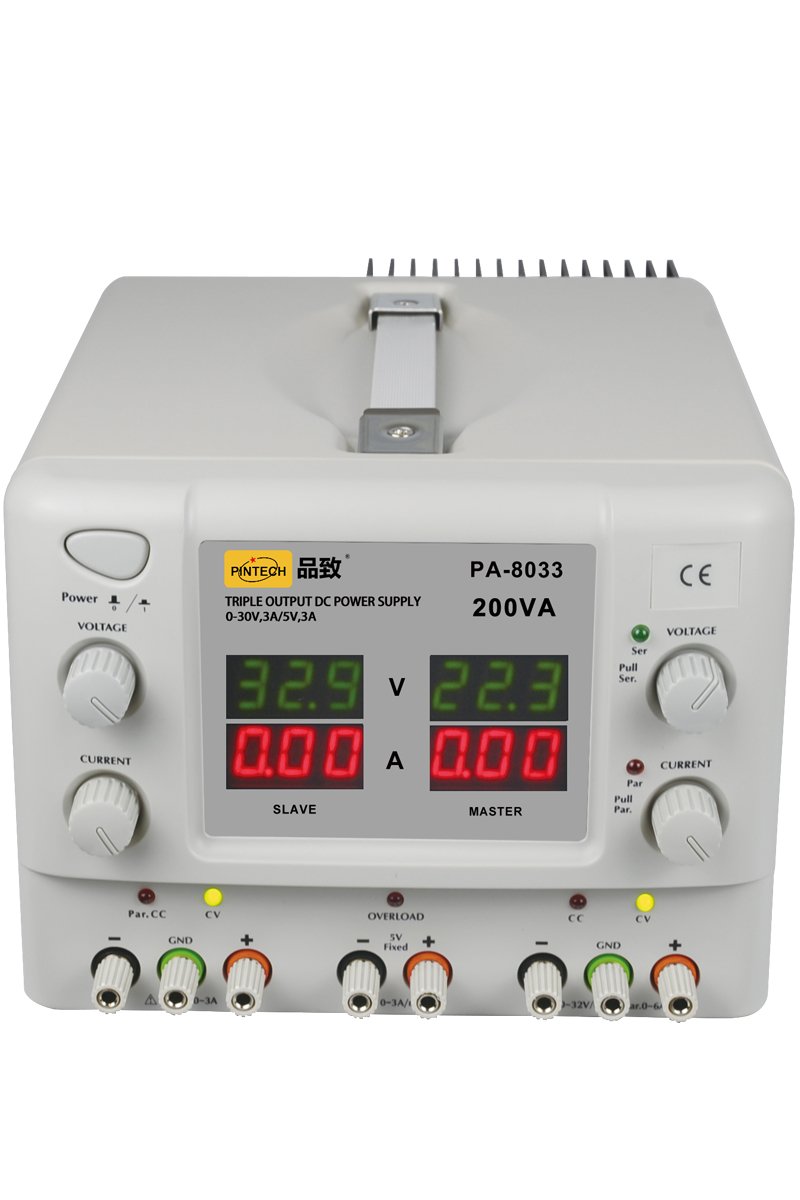

Pintech DC power supply PA-8033 ( 30V/3A x 2 + 5V/3A + 4 Displays+Triple output )

Pintech PA-8033



Low Ripple & Noise 30V/3A+30V/3A+5V/3A Triple output. Tracking operation. <0.4m Vrms Ripple & Noise (C.V.) <2.5m Arms Ripple & Noise(C.C.) 4 Display.

Pintech PA-8033 Specification

Model

PA-8033

Power Transformer

E.I. Type Transformer

Max. Continual Output Power

195VA

Max. Raised Temperature

< 45C

Independent Output

0~30V/0~3A x 2, 5V Fixed / 0~3A;Triple Output

Constant Voltage Characteristic

Regulation

Line <0.05%+3mV,Load <0.05%+5mV

Ripple & Noise

< 0.4mVrms

Temperature coefficient

< 300PPM/C

Constant Current Characteristic

Regulation

Line Regulation<0.2%+2mA,Load Regulation<0.2%+3mA

Ripple & Noise

< 2.5mArms

5V Fixed Output

Regulation

Line Regulation< 5mV,Load Regulation<10mV

Ripple & Noise

< 1.5mVrms

Voltage Accuracy

5V 0.25V

Max. Output Current

3A

Tracking Operation

Parallel Regulation

Line < 0.01%+3mV, Load < 0.01%+5mV

Series+and-Supply Regulation

Line < 0.01%+3mV, Load < 0.01%+5mV

Slave tracking error <0.5%+digital of the master

Series Single Supply Regulation

Line <0.01%+5mA, Load <300mV

Display

Voltage

3 Digits 0.56" Green LED

Current

3 Digits 0.56" Red LED

Accuracy

0.1% + 2 digits

General

Power source

ACV 115/230 10%, 50/60Hz

Dimensions( W x H x D):

230 x 170 x 310 mm

Weight

7.9kg
