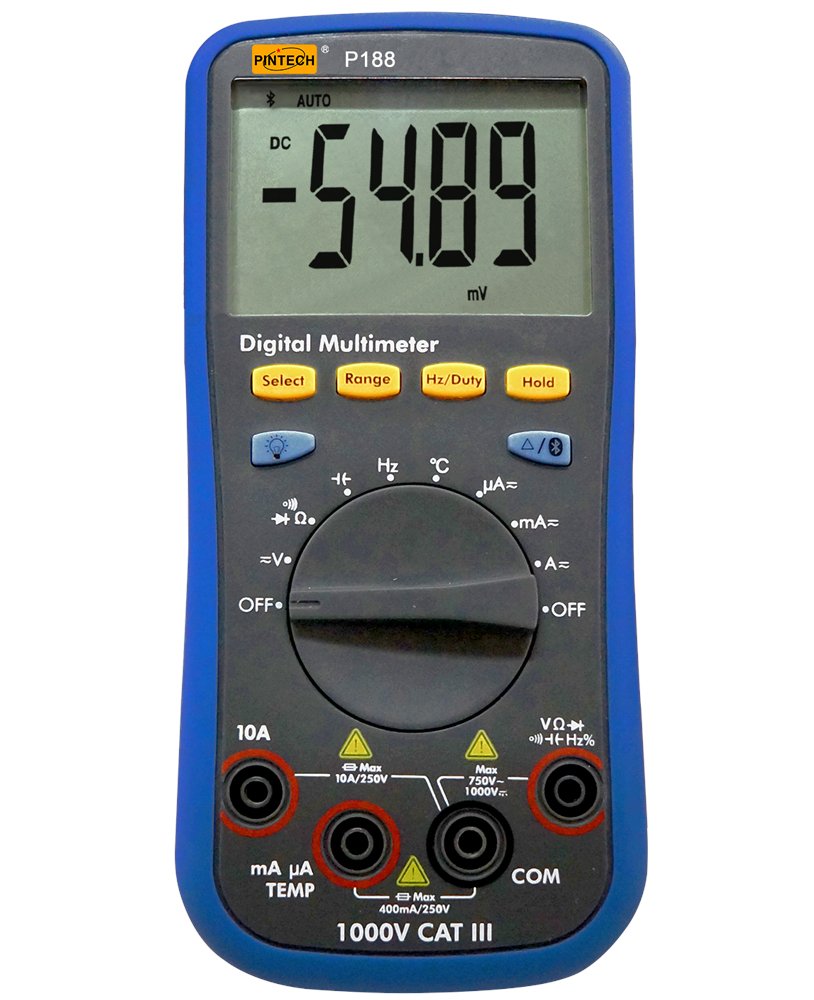

Pintech Digital Multimeter (DMM) P188 (1000V/10A)

Pintech P188



3 in 1 : datalogger + multimeter + temperature meter.multi-connection (more than one device) supported via mobile app.the change trend analysis accessible via special chart mode.voice warning supported, which assures measurement safety.smart voice-reading accessible.3(3/4) -digit counterparts. smart power-off option extending battery life.Bluetooth 4.0 version - supports mobile device with Android 4.3 or above / iOS 7.0 or above OS, and equipped with ble 4.0 module

Pintech P188 Specification

Basic function Range Min resolution Accuracy
DC voltage V 400mV/4V/40V/400V 0.1 mV (0.5%+2dig)
1000V 1 V (0.8%+2dig)
AC voltage V 4V/40V 1 mV (0.8%+2dig)
400V/750V 0.1 V (1%+3dig)
DC current A 400A/4000A 0.1 A (0.8%+2dig)
mA 40.00mA/400mA 0.01 mA (0.8%+2dig)
A 4A /10A 1 mA (1.2%+3dig)
AC current A 400A/4000A 0.1 A (1%+3dig)
mA 40mA/400mA 0.01 mA (0.8%+2dig)
A 4A /10A 1 mA (2%+3dig)
Resistance 400O/4kO/40kO/400kO/4MO 0.1 O (0.8%+2dig)
40MO 0.01 MO (2%+3dig)
Capacitance 40nF/400nF/4F/40F 0.01 nF (2.5%+3dig)
100F 0.1 F (3%+5dig)
Frequency 4.999Hz/49.99Hz/499.9Hz/4.999kHz/49.99kHz/499.9kHz/4.999MHz 1 mHz (0.8%+2dig)
Duty ratio 0.1% - 99.9%
(Typical:Vrms=1 V, f=1 kHz)
0.1% (1.2%+3dig)
0.1% - 99.9%(=1 kHz) (2.5%+3dig)
Temperature -50 ? ?400 ? 1? (2.5%+3dig)
Features Instructions
The Max. reading 3999
Frequency response (40 - 400) Hz
Numerical conversion rate 3 Times/Second
The bluetooth communication v
Automatic range v
Diode test v
Automatic shutdown v
Break a buzzer v
Battery low voltage indicator v(When battery power is too low to work, battery image will appear
Digital keep(Data Hold) v
Relative measurement v
LCD backlight v
Input protection v
Input impedance =10 MO
Battery 3 V (1.5 V 2) AA
LCD size 69 mm * 52 mm
Body weight 0.29 kg
Size 85 mm * 185 mm * 30 mm
Working temperature 0 ?~40 ?
Storage temperature -10 ?~60 ?
Relative humidity =80%
Height Operating 3000 m,Storage 15000 m
