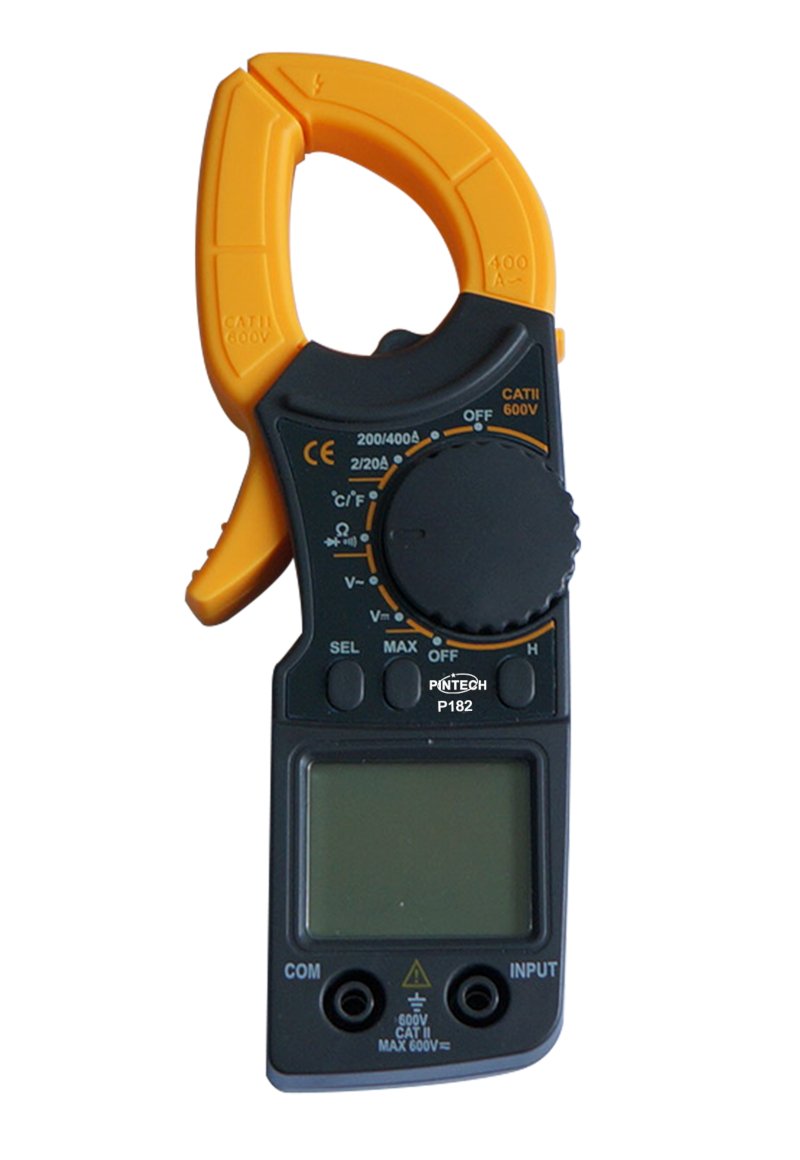

Pintech P182 (600V/400A) Clamp Meter

Pintech P182



Clamp Meter P182 is a stable, safe 3 clamp meter,Auto- / manual range function,Over-range protection,Display count : 2000 ,Automatic negative polarity display

Pintech P182 Specification

AC voltage
Range resolution Accuracy Overload protection
2V 1mV (1.2%+5) 600V rms
20V 10mV
200V 0.1V
600V 1V (1.5%+5)
DC voltage
Range resolution Accuracy Overload protection
200mV 0.1mV (0.8%+5)
2V 1mV (0.8%+5) 600V rms
20V 10mV
200V 0.1V
600V 1V (1.0%+5)
resistance
Range resolution Accuracy Overload protection
200O 100mO (1.2%+5) 600Vp
2KO 1O (1%+3)
20KO 10O
200KO 100O
2MO 1KO (1.2%+5)
20MO 10KO (1.5%+5)
Connecting Test
Range resolution Accuracy Overload protection
100mO =30O The buzzer will ring(open-circuit voltage about 0.45V) 400A rms
Diode Test
Range resolution Accuracy Overload protection
1mV display forward-voltage-drop appr. value(open-circuit voltage about 1.48V) 600Vp
AC current
Range resolution Accuracy Frequency response Overload protection
2A 1mA (4%+20)=0.4A 50Hz~60Hz 400A rms
(3%+15)
20A 10mA (3%+15)=4A
(2%+10)
200A 0.1A (2%+5)
400A 1A
