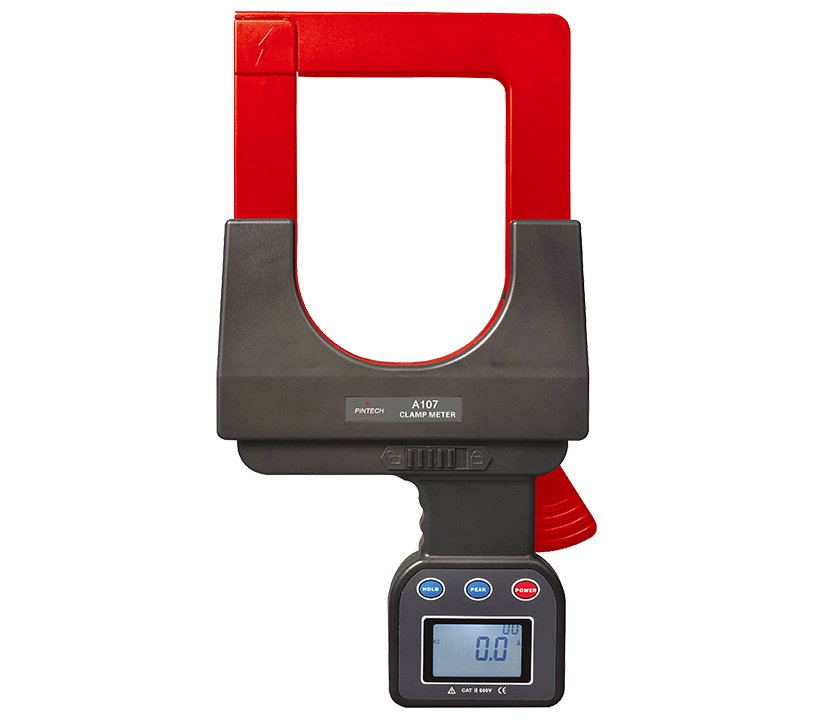

Pintech A107 4000A Large Jaws Clamp Ammeters

Pintech A107

Product Introduction
Product Name : A107 4000A Large Jaws Clamp Ammeters Short Description : Model Number : A107 Max. current : 1000A Jaw Capacity : 108mm×148mm Auto Power Off : 5 Minutes

Pintech A107 Specification

Specifications Range Best Accuracy
Model A107
Current (A) Range 0.0mA~499A ±(2%+5)
500A~999A ±(3%+5)
1000A~2999A ±(4%+5)
3000A~4000A ±(5%+5)
Resolution 0.1A
Test Range AC 0.A~4000A v
Display Mode 4 Digits LCD Display v
Clapm Size 108mm×148mm(can clamp electric cable of 108mm diameter ,or 160mm *4mm flat cable and steel earth wires ) v
Auto Range v
RS-232 v
Data Storage 99
LCD Backlight v
Date Hold v
Overload Protection OL v
Auto Power Off 5Minutes v
Low Battery Indication =5.2V v
Test Model Clamp CT,integral mode v
General Characteristics
Power 6V DC( LR6×4 Alkaline Batteries)
LCD Size 47mm×28.5mm
Product Color Red and Grey
Product Net Weight 1.5kg(Included Batteries)
Product Size 350mm×180mm×55mm
Standard Accessories Batteries ?RS232 Interface Cable ?Software CD?toolbox
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 6PCs
Standard Carton Measurement 610X375X320mm
Standard Carton Gross Weight 35Kg
