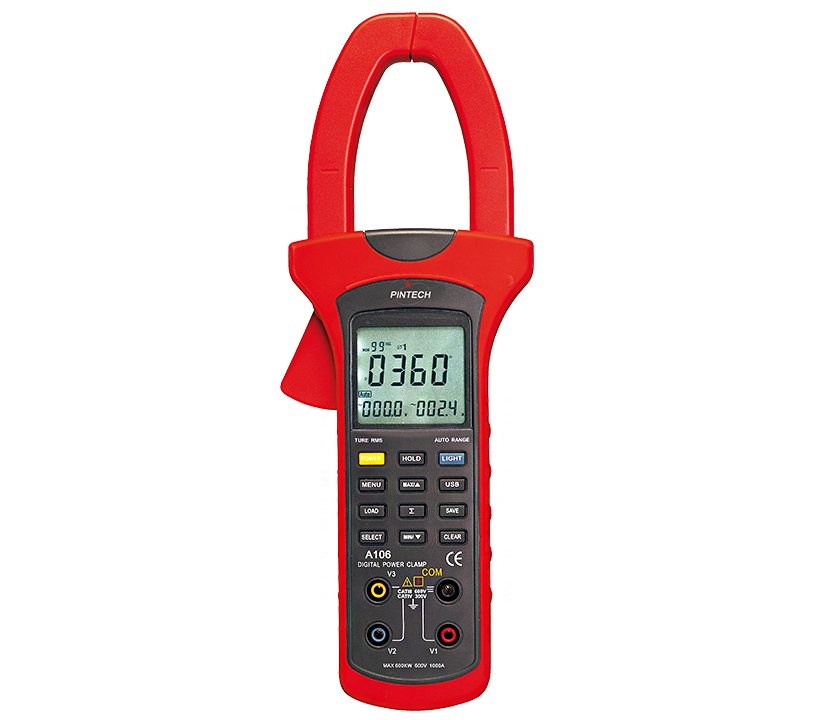

Pintech A106 Digital Power Clamp Meters

Pintech A106



Product Introduction
Product Name : A106 Digital Power Clamp Meters Short Description : Model Number : A106 Max. current : 1000A Display Count : 9999 Jaw Capacity : 50mm

Pintech A106 Specification

Specifications Range Best Accuracy
Model A106
AC Current (A) 40A/100A/400A/1000A ±(2%+5)
AC Voltage(V) 15V/100V/300V/600V ±(1.2%+5)
Frequency(Hz) 20Hz~500Hz v
Active Power (W) 0.01KW-600KW ±(3%+5)
Apparent Power (VA) 0.01KVA~600KVA ±(3%+5)
Reactive Power (VAr) 0.01KVAr~600KVAr ±(4%+5)
Power Factor 0.3~1 ±(0.02%+2)
Phase Factor (°) 0° ~ 360° ±1°
Active Energy (Wh) 1~9999KWh ±(3%+2)
Features
Display Count 9999
Auto Range v
Jaw Capacity 50mm
True RMS AC Voltage/AC Current v
Auto Power Off v
Low Battery Indication v
Data Hold v
MAX/MIN v
Data Storage 99
USB Interface v
LCD Backlight v
Full Icon Display v
Single-Phrase 2-Wires v
3—Phrase3-Wires v
3—Phrase4-Wires v
Phase Sequence Test Positive Phase,Reverse Phase,Phase Deficiency v
Auto Calibration v
Input Impedance for DCV =10MO v
General Characteristics
Power 1.5V Batteries (5?) ×4
LCD Size 46mm X 42mm
Product Color Red and Grey
Product Net Weight 601g
Product Size 303mm X 112mm X39mm
Standard Accessories Battery ,Test Lead,Aligator Cilp,USB Interface Cable ,PC Software CD,Point Contact Temperature Probe
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 5PCs
Standard Carton Measurement 480mm X 372mm X 315mm
Standard Carton Gross Weight 12Kg
