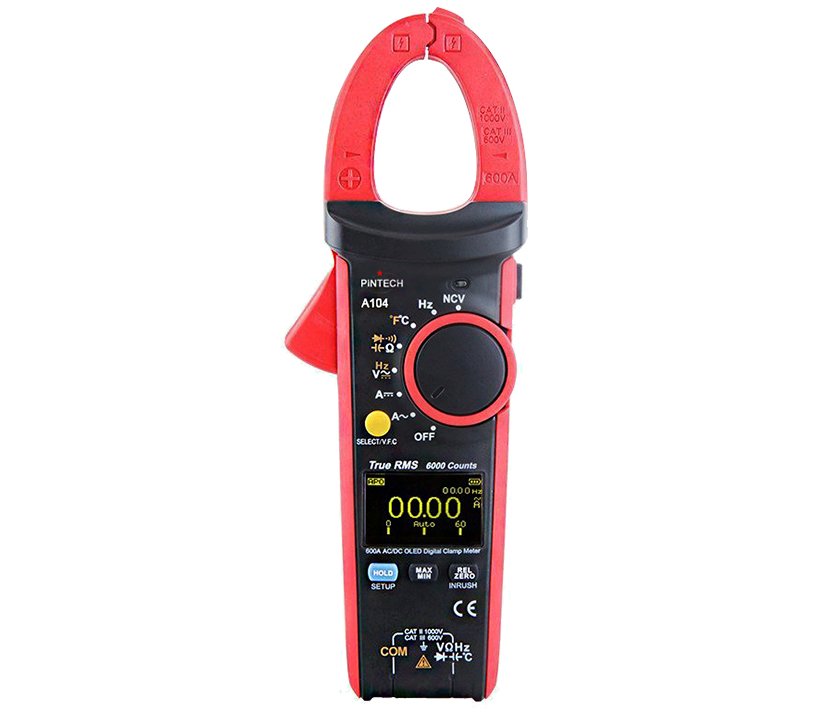

Pintech A104 600A True RMS Digital Clamp Meters

Pintech A104



Product Introduction
Product Name : A104 600A True RMS Digital Clamp Meters Short Description : Model Number : A104 Max. current : 600A Display Count : 5999 Jaw Capacity : 30mm

Pintech A104 Specification

Detailed description :
600A True RMS Digital Clamp Meters A104A104 series Digital Clamp Meters with thecharacteristics of high reliability, high security, automatic measurement range, handheld type etc. Full range overload protection and unique appearance design, which becomes more superior performance of electrical instruments. Itis suitable for measurement of college,smelt, communication, manufacturing,petroleum, national defense, electric power, chemical industry and otherindustries. Its an ideal tool for the maintenance and repair of the circuit ,power equipment.
Specifications Range Best Accuracy
Model A104
AC Current (A) 60A/600A (2.5%+5)
AC Current Frequency(Hz) 40Hz ~ 400Hz
DC Current (A) 60A/600A (2.5%+5)
AC Voltage(V) 6V/60V/600V/750V (1.2%+5)
AC Current Frequency(Hz) 40Hz ~400Hz
DC Voltage(V) 600mV/6V/60V/600V/1000V (0.8%+1)
Resistance(O) 600O/6kO/60kO/600kO/6MO/60MO (1%+2)
Capacitance (F) 60nF/600nF/6F/60F/600F/6mF/60mF (4.0%+5)
Frequency(Hz) 10Hz~1MHz (0.1%+4)
Temperature(C) -40 C ~ 1000C (2.0%+5)
Temperature(F) -40 F ~ 1832F (2.0%+10)
Features
Display Count 5999
Auto Range
Jaw Capacity 30mm
True RMS
Diode Around 3.0V
VFC
NCV
Data Hold
Relative Mode
MAX/MIN
Inrush Current
LCD Backlight
OLED Display
Analogue Bar Graph 21
Flashlight
Auto Power Off Around 15minutes
Continuity Buzzer
Low Battery Indication, =3.6V
Input Protection
Input Impedance for DCV =10MO
General Characteristics
Power AAA 1.5V x 3
LCD Size 38mm x 24 mm
Product Color Red and Grey
Product Net Weight 231.7g
Product Size 220mm x 75mm x 40mm
Standard Accessories Batteries,TestLead,Point Contact Temperature Probe
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 40 PCs
Standard Carton Measurement 485mm320mm385mm
Standard Carton Gross Weight 20Kg
