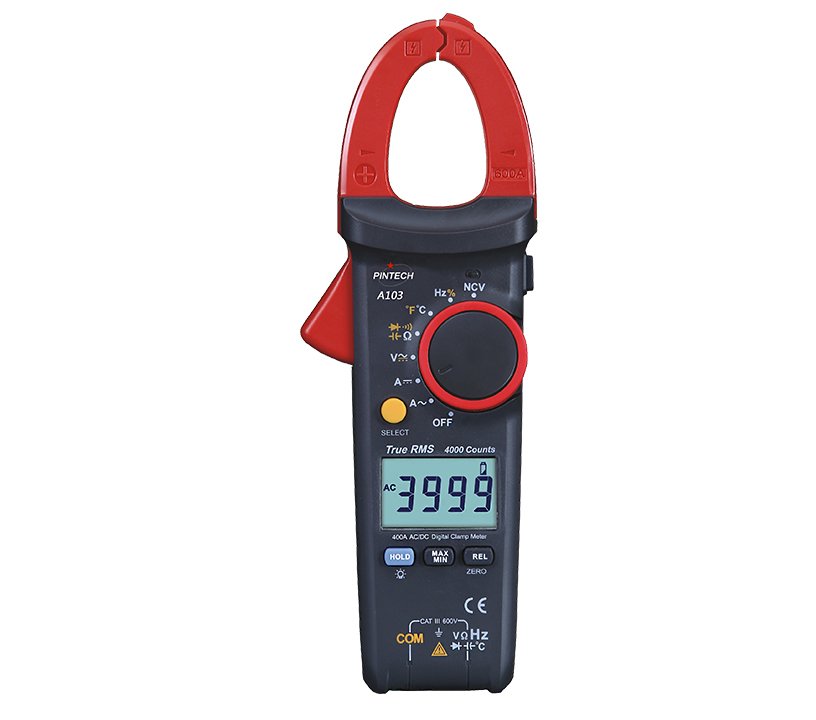

Pintech A103 400A Digital Clamp Meters

Pintech A103



Product Introduction
Product Name : A103 400A Digital Clamp Meters Short Description : Model Number : A103 Max. current : 400A Display Count : 4000 Jaw Capacity : 30mm

Pintech A103 Specification

Detailed description :
A103 series Digital Clamp Meters with thecharacteristics of high reliability, high security, automatic measurement range, handheld type etc. Full range overload protection and unique appearance design, which becomes more superior performance of electrical instruments. Itis suitable for measurement of college, smelt, communication, manufacturing, petroleum,national defense, electric power, chemical industry and other industries. Itsan ideal tool for the maintenance and repair of the circuit , power equipment.
Specifications Range Best Accuracy
Model A103
AC Current (A) 40A/400A (2.5%+5)
DC Current (A) 40A/400A (2.0%+3)
AC Voltage(V) 4V/40V/400V/600V (1.2%+5)
DC Voltage(V) 400mV/4V/40V/400V/600V (0.8%+1)
Resistance(O) 400O/4kO/40kO/400kO/4MO/40MO (1.0%+2)
Capacitance(F) 40nF/400nF/4F/40F/400F/4mF/40mF (4.0%+5)
Frequency(Hz) 10Hz-1MHz (0.1%+4)
Temperature(C) -40 C ~ 1000C (1.0%+3)
Temperature(F) -40? ~ 1832? (1.0%+6)
Features
Display Count 4000
Auto Range v
True RMS v
Jaw Capacity 30mm
Diode (Around 3.0V) v
NCV v
Data Hold v
Relative Mode v
LCD Backlight v
Flashlight v
Auto Power Off v
Continuity Buzzer v
Low Battery Indication =3.6V v
Input Protection v
Input Impedance for DCV =10MO v
General Characteristics
Power AAA 1.5V 3
LCD Size 38mm 24 mm
Product Color Red and Grey
Product Net Weight 231.7g
Product Size 220mm 75mm 40mm
Standard Accessories Batteries,TestLead,Point Contact Temperature Probe
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 40 PCs
Standard Carton Measurement 485mm 320mm 385mm
Standard Carton Gross Weight 20Kg
