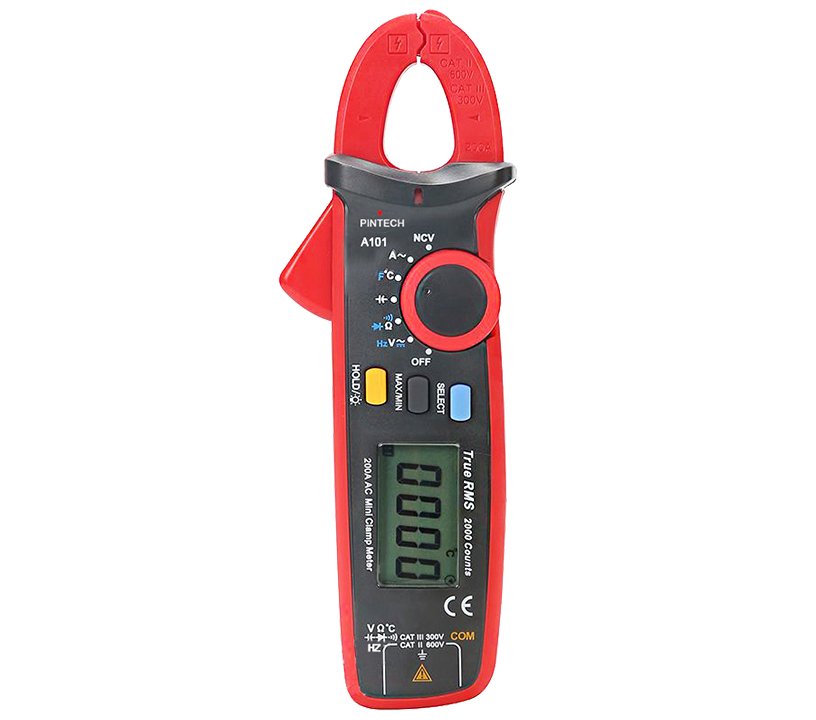

Pintech A101 200A Mini Clamp Meters

Pintech A101



Product Introduction
Product Name : A101 200A Mini Clamp Meters Short Description : Model Number : A101 Max. current : 200A Display Count : 2000 Jaw Capacity : Around 17mm Auto Power Off : Around15minutes

Pintech A101 Specification

Detailed description :
A101 series Mini Clamp Meters with the characteristics of high reliability, high security,automatic measurement range and miniaturization , which can accurately measure currentsignal;Product chip set up VFC startupmode,the inside will pass through aspecific filter circuit,filterthe high frequency interference signal to ensure the accuracy of themeasurement data.It issuitable for frequency conversion voltage, current with VFC,full range overload protection and unique appearance design,which becomes more superior performance of electrical instruments.It is suitable for school, smelt, communication,manufacturing, petroleum, national defense, electric power, chemical industryetc. Its an ideal tool for the maintenance and repair of the circuit , power equipment.
Specifications Range Best Accuracy
Model A101
AC Current (A) 2A/20A/200A
20A/200A (1.8%+9)
AC Voltage(V) 2V/20V200V/600V (1.0%+3)
DC Voltage(V) 200mV/2V/20V200V/600V (0.7%+3)
Resistance(O) 200O/2kO/20kO/200kO/2MO/20MO (1.0%+2)
Capacitance(F) 20nF/200nF/2F/20F/200F/2mF/20mF (4%+5)
Temperature(C) -40?~1000? (1%+3)
Temperature(F) -40?~1832? (1.5%+5)
Features
Display Count 2000
Jaw Capacity Around 17mm
Auto Range v
True RMS v
Diode v
Data Hold v
MIN/MAX v
Continuity Buzzer v
Data Storage v
LCD Backlight v
Auto Power Off Around15minutes v
Low Battery Indication =2.5V v
Input Protection v
Input Impedance for DCV =10MO v
General Characteristics
Power AAA 1.5V 2
LCD Size 39.3mm 26.5 mm
Product Color Red+ Grey
Product Net Weight 170g
Product Size 385mm345mm305mm
Standard Accessories Batteries,Test Lead,Point Contact Temperature Probe
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 40PCs
Standard Carton Measurement 385mm345mm305mm
Standard Carton Gross Weight 11kg
