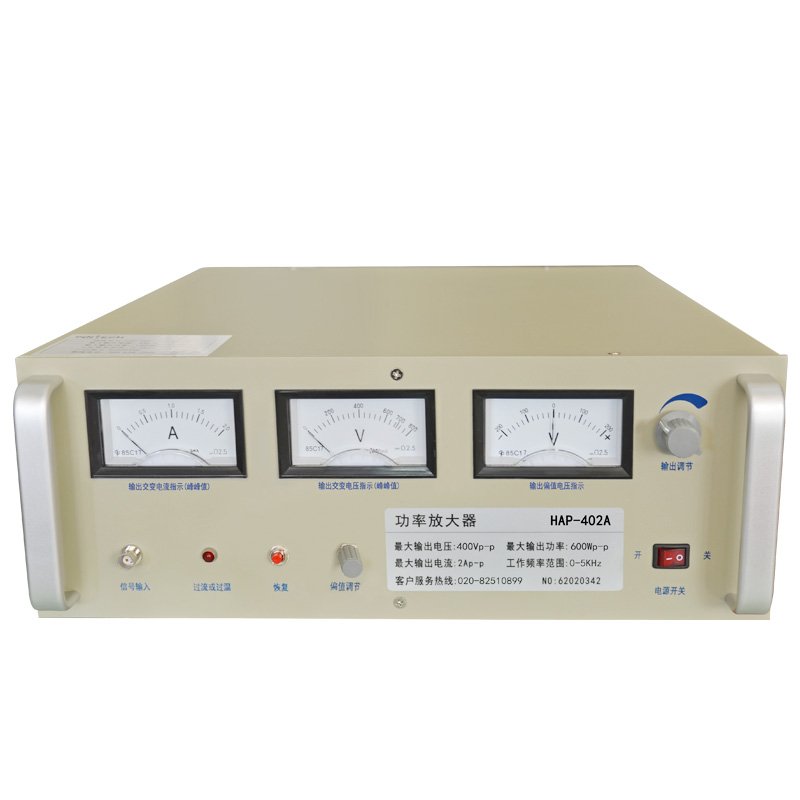

Pintech HAP Power Amplifier

Pintech HAP



HAP power amplifier is easy to operate,and we can manuafacture a specified model for you at your request. It"s very suitable for school,institute to carry out ultrasonic motor technology research, piezoelectric ceramic (crystal) vibration experiment and eddy current excitation vibration detection experiment. If the parameters of the form cannot meet the requirements, please consult our staff.

Pintech HAP Specification

Capacitive load high voltage power power amplifier
Model HAP-401 HAP-402 HAP-601 HAP-602 HAP-604 HAP-803
Max. output voltage 400V 400V 600V 600V 600V 800V
Max. output current 1A 2A 1A 2A 4A 3A
Bandwidth 5KHz-150KHz
Output accuracy better than 2%
Nom-linear distortion <1% <2% <1% <2% <2% <2%
Output signal to noise ratio >80dB
Input impedance 10KO
Input signal 0-ą5Vp
Working Temperature 0-40?
Working humidity <80% R.H
Power supply 220V Acą10% 50Hz
Power amplifier(with vibrator)
Model HAP-336 HAP-450 HAP-3018 HAP-4040 HAP-8041
Max. output power 110W 200W 550W 1600W 3300W
Max. output current 3A 4A 30A 40A 80A
Bandwidth 0-10KHz
Nom-linear distortion <0.5% <0.1% <1%
Output signal to noise ratio >76dB
Input voltage 0-ą5Vp
Working Temperature 0-40?
Working humidity <80% R.H
Power supply 220V ACą10% 50Hz 380V ACą10%
