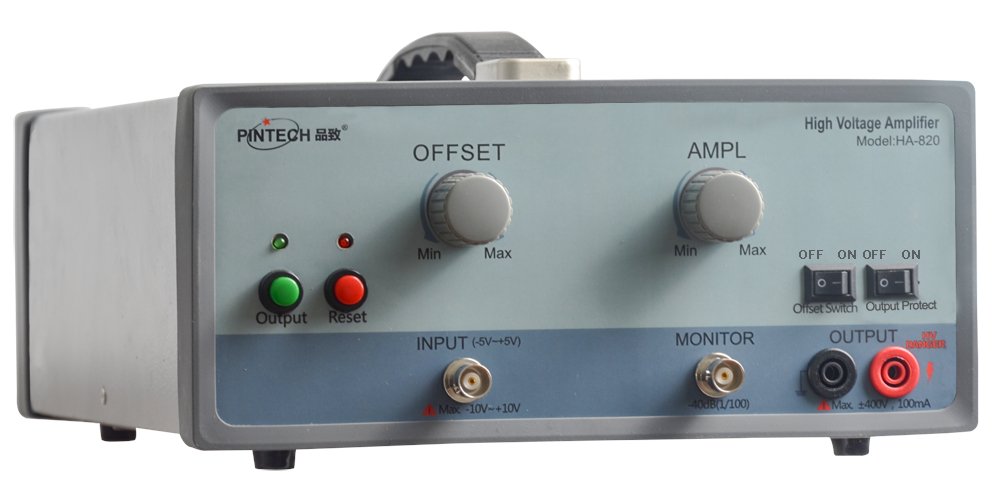

Pintech HA-820 (200KHz,800Vp-p) High voltage amplifier

Pintech HA-820



HA-820 is a very practical high voltage amplifier in testing and measuring industry. Its dimension is small, light weight and easy operation. The max voltage output is able to reach 800 Vp-p. The various advantages are very useful for users operation. Very suitable for different industries for : Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function Generator Amplifier.

Pintech HA-820 Specification

MODEL HA-820
Output DC Voltage(Max.) 400V DC
Output AC Voltage(Max.) 800Vp-p
Output DC Current(Max.) 100mADC
Output AC Current(Max.) 200mAp-p
Output Power(Max.) 40 VA
Power Bandwidth 200KHz/400Vp-p
Slew Rate 300V/us
Output Resistance (Protection SW OFF 100O
Output Resistance (Protection SW ON) 7.5KO
Safe Loading 0~10Vp-p/20Vp-p
Voltage Gain 0~100 (10 turns)
DC OFFSET 0~ ± 400V(10turns+switch)
Output monitor 100:1
