Pintech HA-4800 (5KHz,4800Vp-p) high voltage amplifier

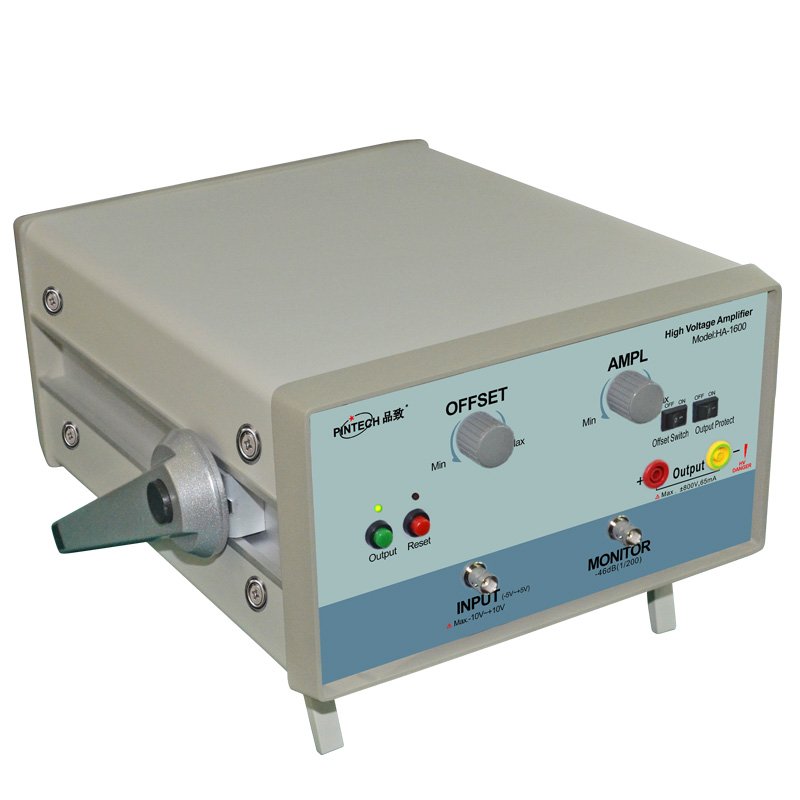

Pintech HA-4800



It is a very practical high voltage amplifier in testing and measuring industry. Low cost and easy operation. The max voltage output is able to reach 4800 Vp-p. The various advantages are very useful for users operation. Very suitable for different industries for : Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function generator.

Pintech HA-4800 Specification

MODEL HA-4800
Output DC Voltage(Max.) 2400V DC
Output AC Voltage(Max.) 4800Vp-p
Output DC Current(Max.) 50mADC
Output AC Current(Max.) 100mAp-p
Output Power(Max.) 120 VA
Bandwidth(Typ.) 5KHz/2400Vp-p
Slew Rate(Typ.) 60V/us
Output Resistance(Protection switch off) 100O
Output Resistance (Protection switch on) 120KO/120watt
Safe use load limited =48KO/4800Vp-p
Input waveform(voltage)max./limited 5V(max. 10V)
AMPL(Voltage Gain times) 0~480 (10turns)
OFFSET(Adjustable DC voltage output) 0~ 2400V(10turns+switch)
Monitor (output) 500:1
Output protection device 1.Protection SW Protection resistance(Switch)2.Overload protection circuit3.Output special fuse
