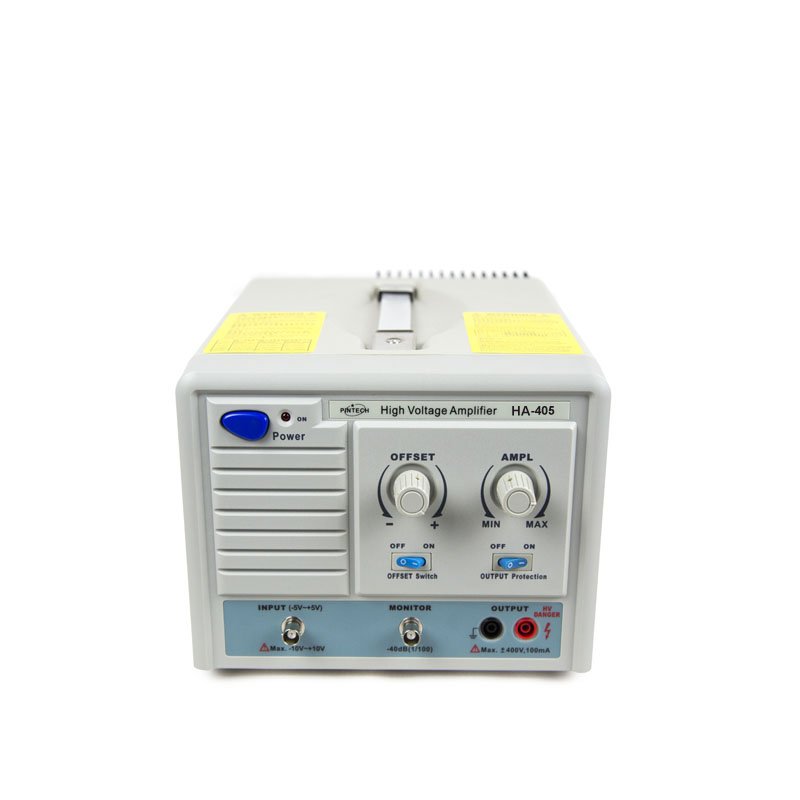

Pintech HA-405 (1MHz,400V) High Voltage Amplifier

Pintech HA-405



Product Introduction
Product Name : HA-405 (1MHz,400V) High Voltage Amplifier Short Description : 400Vp-p(±200V DC) 400mAp-p(±200mA DC) Bandwidth : ?1MHz(200Vp-p) Slew Rate : 500V/us Gain(AMPL) : 0~90(10 Turn VR)

Pintech HA-405 Specification

Model HA-405
Output DC Voltage(Max.) ±200V
Output AC Voltage(Max.) 400Vp-p
DC Current(Max.) ±200mA
AC Current(Max.) 400mAp-p
Output Power(Max.) 80VA
Power Bandwidth 1MHz/200Vp-p
Slew Rate 500V/us
Output Resistance (Protection SW OFF) 50O
Output Resistance (Protection SW ON) 2KO/80watt
Safe Loading ?1KO/400Vp-p
Input Voltage 0~20Vp-p
Voltage Gain 1~90
DC OFFEST 0 or± 200V
Monitor Output 100:1
