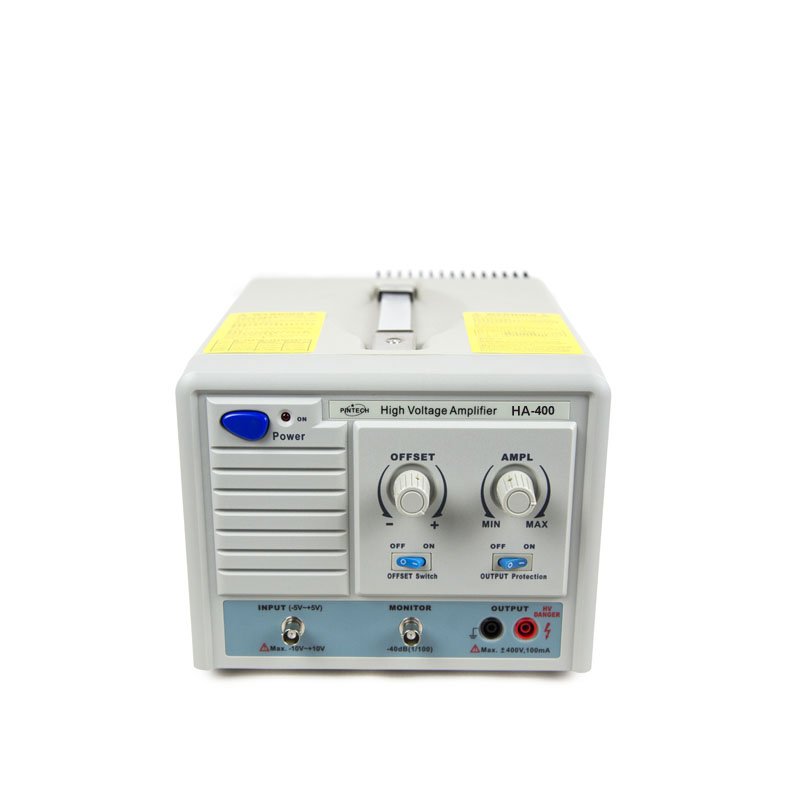

Pintech HA-400 (600KHz,400V) High Voltage Amplifier

Pintech HA-400



Product Introduction
Product Name : HA-400 (600KHz,400V) High Voltage Amplifier Short Description : 400Vp-p(±200V DC) 160mAp-p(±80mA DC) Bandwidth : ?600KHz(200Vp-p) Slew Rate : 300V/us

Pintech HA-400 Specification

Model HA-400
Output DC Voltage(Max.) ±200V
Output AC Voltage(Max.) 400Vp-p
DC Current(Max.) ±80mA
AC Current(Max.) 160mAp-p
Output Power(Max.) 32VA
Power Bandwidth 600KHz/200Vp-p
Slew Rate 300V/us
Output Resistance (Protection SW OFF) 50O
Output Resistance (Protection SW ON) 4KO/40watt
Safe Loading ?2.5KO/400Vp-p
Input Voltage 0~20Vp-p
Voltage Gain 1~90
DC OFFEST 0 or± 200V
Monitor Output 100:1
