Pintech HA-1600 (200KHz,1600Vp-p) high voltage amplifier

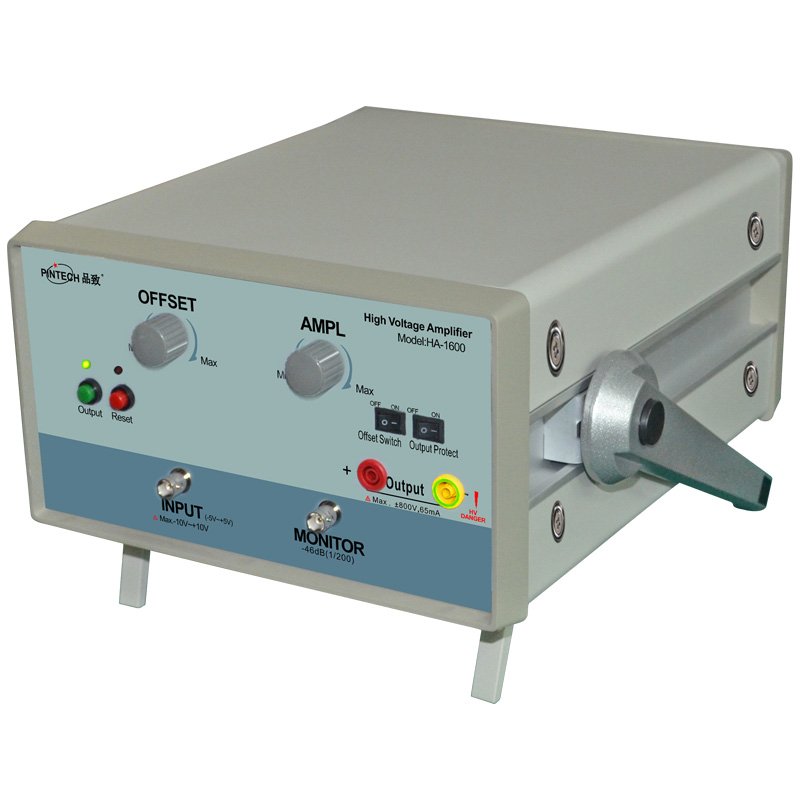

Pintech HA-1600



It is a very practical high voltage amplifier in testing and measuring industry. Low cost and easy operation. The max voltage output is able to reach 1600 Vp-p. The various advantages are very useful for users operation. Very suitable for different industries for : Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function generator.

Pintech HA-1600 Specification

MODEL HA-1600
Output DC Voltage(Max.) 800V DC
Output AC Voltage(Max.) 1600Vp-p
Output DC Current(Max.) 65mADC
Output AC Current(Max.) 130mAp-p
Output Power(Max.) 52 VA
Bandwidth(Typ.) 200KHz/800Vp-p
Slew Rate(Typ.) 1000V/us
Output Resistance(Protection switch off) 10O
Output Resistance (Protection switch on) 15KO/60Watt
Safe use load limited 12.5KO/1600Vp-p
Input waveform(voltage)max./limited ±5V(max. ±10V)
AMPL(Voltage Gain times) 0~200 (10turns)
OFFSET(Adjustable DC voltage output) 0~ ± 800V(10turns+switch)
Monitor (output) 200:1
Output protection device 1.Protection SW Protection resistance(Switch)2.Overload protection circuit
