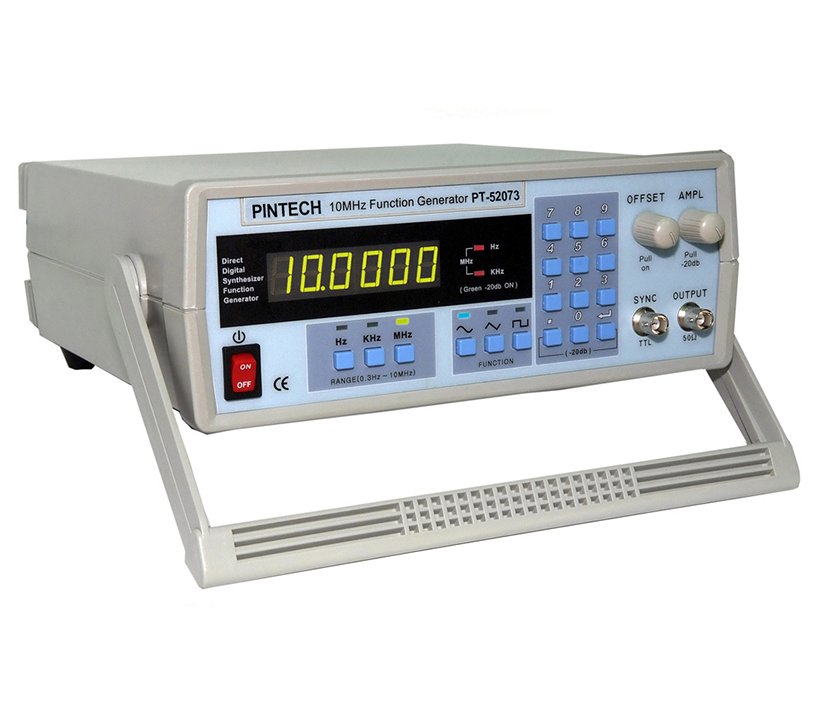

Pintech DDS Function Generator PT-52073 (0.5Hz~10MHz,3 ranges,3 waveforms)

Pintech PT-52073



DDS Function Generator Frequency : 0.5Hz~10MHz,3 ranges 3 waveforms : Sins, Square, Triangle

Pintech PT-52073 Specification

Model PT-52073
Display 6digits 0.56" Green LED
Frequency (Sins, Square, Triangle) 0.5Hz-10MHz
Range key 3 ranges(Hz,KHz,Mhz)
Function wave 3 function(Sins, Square, Triangle)
Frequency Stability ±10PPM
Accuracy ±10PPM+1 digit
Aging ±1PPM/1 year
Sine wave Harmonic distortion -55dB to 200KHz,-30dB to 10MHz
Flatness ±0.3dB to 1MHz,±3dB to 10MHz
Triangle wave =98% to 100KHz,=90% to 10MHz
Square wave Level ±2% to 1MHz,±10% to 10MHz
Rise time ?35nS
Duty cycle 20%~80% ADJ(0.3Hz~3MHz at square wave)
SYNC output Level =3V to 10MHz
Rise time ?35nS
Amplitude Max. level 20Vp-p(1MO load),10Vp-p(50O load
Min. level 20mVp-p(1MO load),10mVp-p(50O load
Attenuator -20dBX2(-40dB)
DC offset Fix or ADJ(±10V at 1MOload,±5V at 50Oload)
RS232 or USB Built-in
PC control Frequency,waveform,attenuatorx1
Dimension / net weight 275(W) X 90(H) X 300(D) mm
