Pintech Function generator PT-5203 (0.5Hz to 5MHz, 8 ranges,3 waveforms)

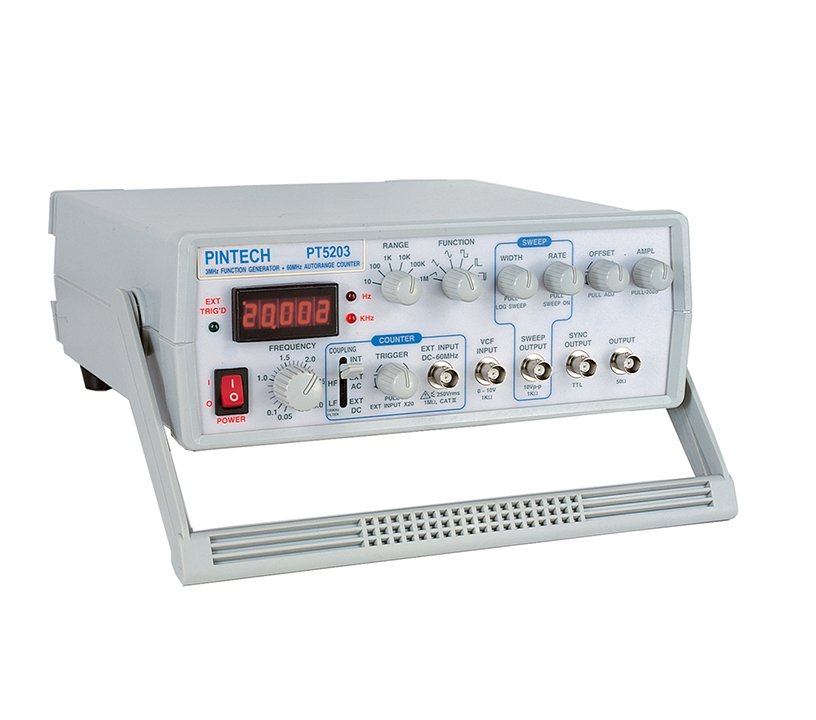

Pintech PT-5203



Frequency : 0.05Hz ~ 5MHz Linear / Log Sweep mode Max output current : 200mA (when ±10v output) Adjustable output voltage : 0~±10v?

Pintech PT-5203 Specification

FEATURE ITEM SPECIFICATIONS
MAIN OUTPUT Frequency Range 0.5Hz to 5MHz,8ranges
Waveform 3 Waveform(Sins, Square, Triangle)
Max. Output 20Vp-p / Open, 10Vp-p / 50O Load
Attenuator X20 (-26dB) ±2%, X1 (0dB)
Output Impedance 50O (±2%)
DC Offset ±10V With Pull ADJ Switch
Freq Accuracy ±0.02% + ID
Distortion <1%, 1Hz to 100KHz
Rise / Fall Time <90ns
V.C.F Input 0 to ±10V control frequency to 1000:1
SYNC OUTPUT Rise time <60ns
Level >3Vp-p(open)
Waveform Square, pulse
SWEEP MODE Linear / Log Sweep
Width >100:1 continuously variable
Rate From 10mS to 5S continuously variable
Sweep Output 10Vp-p (open)
Output Impedance 1KO±2%
COUNTER Display 5digits 0.36" Red LED
Gate time Auto selection (0.25S~10S)
Resolution 0.001Hz
MODE INT / EXT HF / EXT LF (100KHz Filter)
Accuracy ±time base accuracy ±1count
Time Base 20MHz ±20PPM (23±5°C)
Frequency Range 0.2Hz~60MHZ
Sensitivity 25mVrms at 1MHz
Max. input 150Vrms
Input impedance 1MO±2%
Range key 8 ranges
Power supply AC115V/230V ±10%, 50/60Hz, 25watt
Dimension 275(W) X 90(H) X 300(D) mm
Weight 2.5kg
