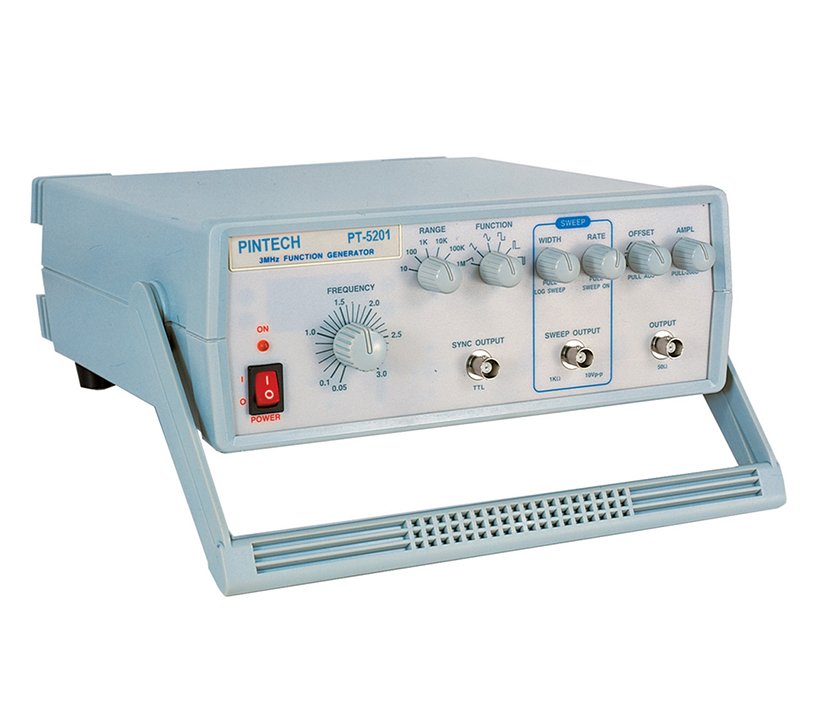

Pintech Function generator PT-5201 (0.5Hz~3MHz,6 waveforms,6 ranges)

Pintech PT-5201



The Scale labeled on 6 kinds of waveform ,so it is more convenient to use. The Frequency is from 0.5Hz to 3MHz. Linear and logarithmic scanning work. Max.20Vpp output (open)

Pintech PT-5201 Specification

Frequency intercommunity
Frequency range 0.5Hz ~ 3MHz,With five digits LED display,Maximum resolution 0.001Hz,it is divided into six file, and use the rotary switch to selection
Input waveform Totally have six waveform: Oblique wave, triangle wave, sine wave, square wave, is pulse wave and negative pulse. knobbing switch can directly choose output
stability 0.1%-In the boot after 15 minutes. 0.2%-In the boot after 24 hours
Dc offset
(DC OFFSET)
Continuous variable、 switch isolation dc; Maximum range + - 10V(unloaded), + - 5V(50Ωload)
Oblique wave
Frequency range 0.5Hz ~ 2.5MHz,With five digits LED display
Maximum resolution 0.001Hz
Symmetry proportion Compare with 15%( Decline range) ,the 85%( Up band)<5%(1Hz ~ 100KHz)
Rising wave linear <1%(1Hz ~ 100KHz)
Triangular wave
Frequency range 0.5Hz ~ 3MHz,With five digits LED display
Maximum resolution 0.001Hz
Symmetry proportion Compare with 15%( Decline range) ,the 50%( Up band)<5%(1Hz ~ 100KHz)
Linear <1%(1Hz ~ 100KHz)
sine wave.
Frequency range 0.5Hz ~ 3MHz,With five digits LED display
Maximum resolution 0.001Hz
symmetry Compare with 50%( Decline range) ,the 50%( Up band)<5%(1Hz ~ 100KHz)
distortion <1% to 100KHz
Harmonic proportion <30dB to 3MHz
Frequency response <0.1dB to 100MHz <1dB to 3MHz
Square wave
Frequency range 0.5Hz ~ 3MHz,With five digits LED display
Maximum resolution 0.001Hz
symmetry Compare with 50%( Negative half cycle) ,the 50%( The positive half cycle)error<1% to 100KHz
Rise time <60nS
Is pulse wave
Frequency range 0.5Hz ~ 2.5MHz,With five digits LED display
Maximum resolution 0.001Hz
Is pulse width 0.4sec ~ 100nS(Continuous adjustable)
symmetry Compare with 85%( Negative baseline),the 15%( Is pulse wave)error 5% to 100KHz
Rise time <60nS
Negative pulse wave
Frequency range 0.5Hz ~ 2.5MHz,With five digits LED display
Maximum resolution 0.001Hz
Negative pulse width 0.4sec~100nS
Symmetry Compare with 15%( Negative pulse wave) ,the 85%( Is base)error<5% to100KHz
fall time <60nS
Main output end
Output impedance 50Ω,error<2%
Max output 20Vp-p(Unloaded ),0.05Vp-p(50Ωload) error: + - 0.5V
Min output 0.1Vp-p(unloaded),0.05Vp-p(50Ωload)
Attenuator -20dB An Attenuation switch ; Attenuation error:<2%
Synchronous output end
Output level TTL level,>3Vp-p Fixed amplitude
Fan three-dimensional >20
Rise time <30nS
VCF input
Input level 0~10V Voltage input
Maximum frequency change guy 1 : 1 ~ 1 : 1000
Input frequency DC ~ 1KHz
Scanning synchronous output end
Output resistance 1KΩ,error<2%
Output waveform LINEAR or LOG scan Oblique wave
Output amplitude 10Vp-p(unloaded),5Vp-p(51KΩload)
output frequency Continuous variable,0.2Hz ~ 100Hz
Scanning generator
scan mode LINEAR/ LOG scan ,With switch
scan rate 5sec ~ 10mS,Continuous variable
run length 1 : 1 ~ 1 : 100(with frequency control to use)
general characteristic
Operating environment temperature:0 ~ 40 ; humidity 0 ~ 90%
Operating Voltage AC 115V(+-10%) 50/60Hz , FUSE 600mA。
AC 230V (+-10%) 50/60Hz , FUSE 300mA
Consumed power Max 25VA(W)
Scattered heat Dedicated heat removal fan DC 12V/100mA
Security certification CE,GS,UL,CUL (Inspection qualified)
size 275mm(width) x 90mm(Height) x 300mm( depth)
weight 2.5Kg(Net)
Attached specification,Power cord
