Pintech 2-CH Function/Waveform Generator DG5100/DG5200 (100MHz/200MHz)

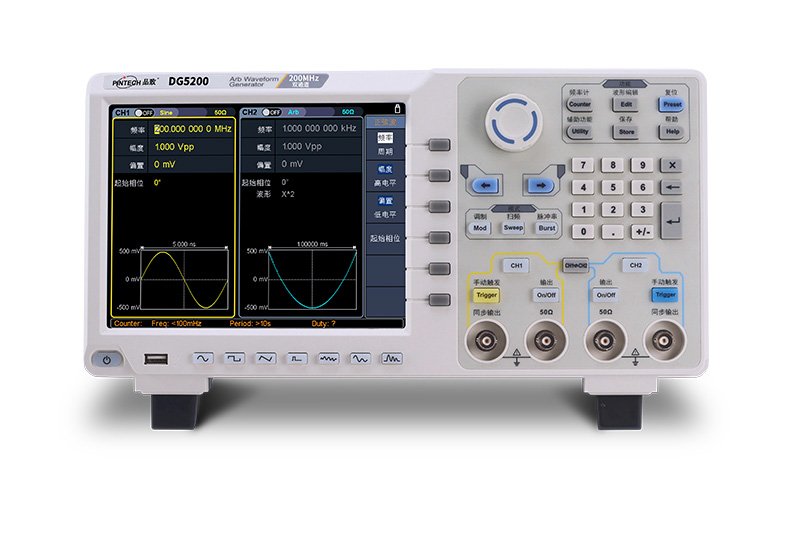

Pintech DG5100/DG5200



100MHz/200MHz 2-ch function/waveform generator.1.25GS/s sampling rate, and 1 Hz frequency resolution,8"" 800 x 600 pixels touch screen LCD. Easy operation.

Pintech DG5100/DG5200 Specification

Model DG5100 DG5200
Channel 2
Frequency Output 100MHz 200MHz
Sample rate 1.25GSa/s
Waveform
Standard waveform sine,square,pulse,ramp,noise,and harmonic
Arbitrary Waveform exponential rise,exponential fall,sin(x)/x,step wave,and others,total 150 built-in waveforms,and user-defined arbitrary waveform
Frequency (resolution 1Hz)
Sine 1Hz-100MHz 1Hz-200MHz
Square 1Hz ~ 40MHz 1Hz ~ 50MHz
Pulse 1Hz ~ 25MHz
Ramp 1Hz ~ 5MHz
noise 120MHz (-3dB,typical )
Arbitrary Waveform 1Hz ~50MHz
Accuracy 1ppm, 0C - 40C ,phase noise =-115dbc/Hz(typical)
Amplitude
into open circuit or high-Z 2mVpp ~ 20Vpp(= 40MHz);2mVpp ~ 10Vpp (=80MHz);
2mVpp ~ 5Vpp(=120MHz);2mVpp ~ 2Vpp(=250MHz)
into 50O load 1mVpp ~ 10Vpp(= 40MHz);1mVpp ~ 5Vpp (=80MHz)
1mVpp ~ 2.5Vpp(=120MHz);1mVpp ~ 1Vpp(=250MHz)
Resolution 1mVpp or 4digits
DC Offset
(AD+DC)
5V(50O)?10V(high-Z, open circuit)
DC Offset Resolution 1mV or 4digits
Load Impedance 50O typical
Accuracy (1% of setting + 1 mVpp) (typical 1kHz sine, 0V offset)
Input / Output
Display 8 (800x600) pixels touch screen LCD
Type external modulation input,
external trigger input,
external reference clock input / output
Communication Interface USB Host, USB Device(support USB-TMC),LAN
Dimension (WHD) 340mm x 177mm x 90mm
Weight About 2.5kg
