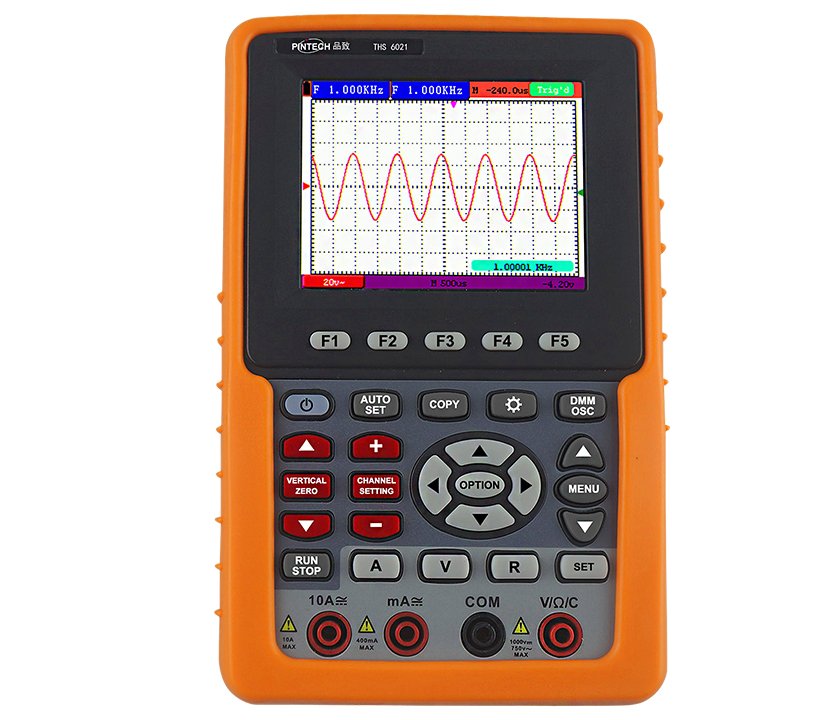

Pintech THS 6021 (20MHz,500MS/s) handheld oscilloscope

Pintech THS 6021



Product Introduction
Product Name : THS 6021 (20MHz,500MS/s) handheld oscilloscope Short Description : + 3 in 1 (DSO + Multimeter+frequency meter) + 20MHz bandwidth + 500MS/s Sample Rate + Single channel,multi-trigger function, adjustable trigger sensitivity + Auto-scale function,easy test and adjust + 20 automatic measurements + Waveform record and replay + 3.7” color TFT display,easy readout under strong light

Pintech THS 6021 Specification

Oscilloscope function specification
Model THS6021
Bandwidth 20MHz
Sample rate 500MS/s
Rise time(BNC typical) =17.5ns
Record Length 6K points
Channel single
Display 3.7" color TFT display
Interval(?T) accuracy Single : ±(1 sample interval time+1ppm x reading+0.6ns);average>16:±(1sample interval time+1ppm x reading+0.4ns)
Input coupling DC, AC, GND
Input impedance 1MO±2%,and 20pF±5pF parallel
Horizontal Scale (s/div) 5ns/div~100s/div,step by 1~2~5
Vertical sensitivity 5mV/div~5V/div(at input)
Vertical resolution 8bit
Max Input Voltage 40V p-p(DC + AC peak to peak,1MO input impedance)(10:1probe attenuation)
Trigger type Edge Rise,fall
Video Line,field,odd field,even field?any line
Trigger mode Auto, Normal, and Single
Auto measurement Vp-p,Vavg,Vrms,Freq,Period,,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,Preshoot,rise time,fall time,+width,-width,+duty,-duty,delay A?B?,delay A?B?
DC gain accuracy ±3%
Waveform storage 4 waveforms
Cursor measurement ?V,?T
USB driver copy unavailable
Communication Interface USB
Power Supply 100V-240V AC, 50/60Hz adaptor / battery
Battery Li-ion Battery,7.4V,3500mAh operation
Dimensions 180mm (L)×113mm (H)×40mm (W)
Weight (without package) 645.00g
Multileter specification
Full scale reading 3(3/4)digits (max 4000-count)
Input Impedance 10MO
Voltage VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)
Current DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance 400O : ±(1% ± 3 digits), 40?O - 4?O : ±(1% ± 1 digit), 40MO : ±(1.5% ± 3 digits)
Capacitance 51.2nF - 100uF : ±(3% ± 3 digits)
Diode 0V~1.5V
Continulty test <50O(±30O)(beeping)
