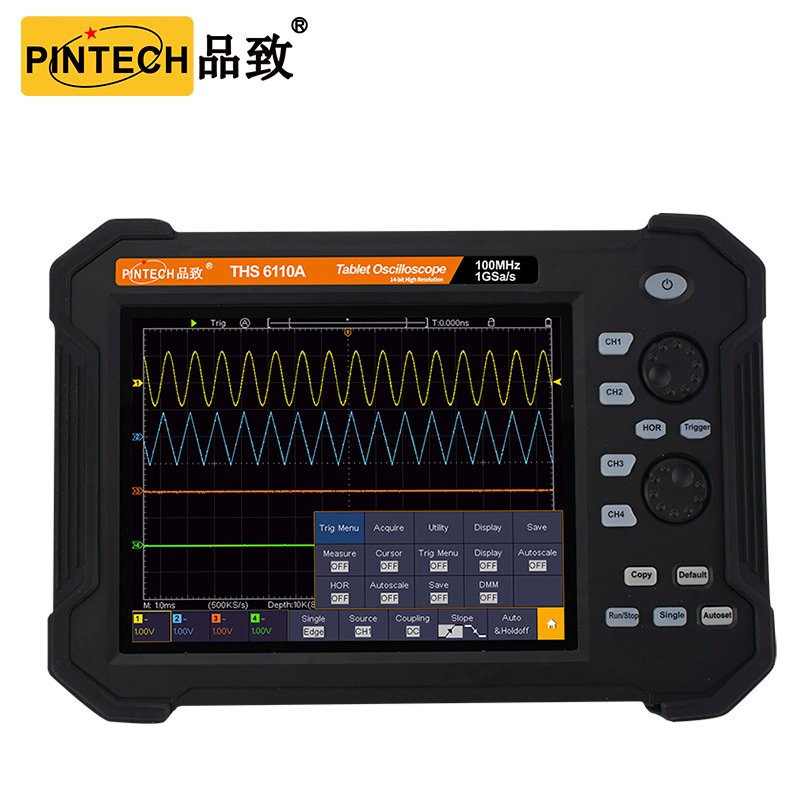

Pintech THS6000 4 channels table oscilloscope

Pintech THS6000



1.Max 14-bit high resolution ADC 2.Max 40M record length; max 45000 wfms/s waveform refresh rate 3.low back ground noise 4.8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience 5.SCPI, and LabVIEW supported 6.multi- trigger, and bus decoding function 7.multi-interface integration - USB host, USB device,LAN, Wifi (optional)

Pintech THS6000 Specification

Model THS 6070 THS 6070A THS 6110 THS 6110A
Bandwidth 70MHz 70MHz 100MHz 100MHz
Sampling rate 1GS/s
Vertical resolution(A/D)) 8 bits 8/12/14 bits 8bits 8/12/14 bits
Record Length 40M
Waveform refresh rate 45,000 wfms/s
Horizontal Scale(s/div) 1ns/div - 1000s/div, step by 1 - 2 - 5
Channel 4
Display 8" color LCD, 800 x 600 pixels display,multi-touch screen
Input impedance 1MO ± 2%, in parallel with 15pF ± 5pF
Max. Input voltage 1MO = 300Vrms;
Probe attenuation factor 0.001X - 1000X, step by 1 - 2 - 5
Frequency stability ±2.5ppm
Input coupling DC, AC, GND
Vertical sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232, CAN
Trigger Type Auto,normal,single
Auto measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A?B ?, Phase A?B?, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A?B ?, Delay A?B?, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Math +, -, ×, ÷, FFT, Digital Filter
Waveform storage 100 sets
Connector USB, Pass/Fail, LAN, WIFI(optional)
Frequency counter Optional
Battery 7.4V, 8000mAh,5 hours operation
Dimension 270x191x48(mm)
Weight (excluding accessories) About 1.7kg
