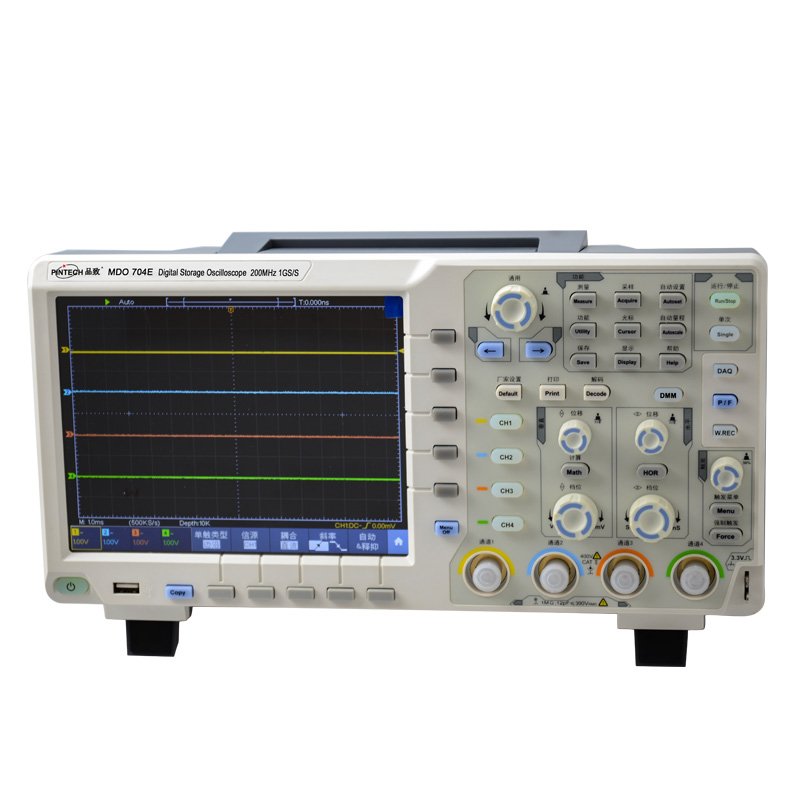

Pintech MDO704E 4 channels (200MHz,1GS/s) digital oscilloscope
|
1. 200MHz Bandwidth, 1GS/s sample rate
2. 8-bit high resolution
3. 40M record length,70,000 wfms/s waveform refresh rate
4. low back ground noise
5. 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
6. SCPI, and LabVIEW supported
7. multi- trigger, and bus decoding function (optional)
8. multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA
|
|
Pintech MDO704E Specification
| Model | Vertical Resolution(A/D) | Bandwidth | Rise time | 1ns/div - 1000s/div, step by 1 - 2 - 5 | | MDO 704E | 8 bits | 200 MHz | = 1.75 ns | | Sample Rate | 4 channels | 500 MSa/s | | 2channels | 1 GSa/s | | Single channel | 1 GSa/s | | Waveform Refresh Rate | 70,000 wfms/s | | Display | 8 inch (800×600)TFT LCD | | Channels | 4 | | Record length | 4 channels operating,10M2channels operating,20MSingle channel operating, 40M | | Sample Rate / Relay Time Accuracy | Max. ±2.5 ppm(environmental temperature+25?) | | Input Coupling | DC, AC, GND | | Input impedance | 1 MO ±2%,in parallel with 15 pF±5 pF | | Max. Input voltage | 400 V(DC + AC peak) | | DC gain accuracy | 1 mV | ±3% | | =2 mV | ±2% | | Vertical Sensitivity | 1 mV/div~10 V/div | | Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic;Optional: I2C, SPI, RS232,
and CAN | | Bus Decoding(optional) | RS232?I2C?SPI?CAN | | Trigger Mode | Auto, Normal, and Single | | Signal format and line/field frequency (video trigger type) | Support any field frequency or line frequency NTSC, PAL and SECAM broadcasting system | | Auto measurement | Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,Preflush,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A?B?,delay A?B?,+Pulse count,-Pulse count,rise edge count,fall edge count,area, cycle area | | Waveform Math | +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function | | Waveform storage | 100 sets | | Communication Interface | Standard | USB Host, USB Device;Trig Out (P/F);LAN | | Optional | VGA | | Printer compatible | PictBridge | | Power supply | 100V – 240 VACRMS, 50/60 Hz, CAT ? | | Fuse | 2A,T class,250 V | | Battery (optional) | 3.7 V, 13200 mAh | | Touch screen(optional) | Multi-touch screen | | Dimension | 340mm(L)x177mm(H)x90mmW) |
|
|
