Pintech MDO 7022 2 channels (20MHz,100MS/s) portable oscilloscope

Pintech MDO 7022



Product Introduction

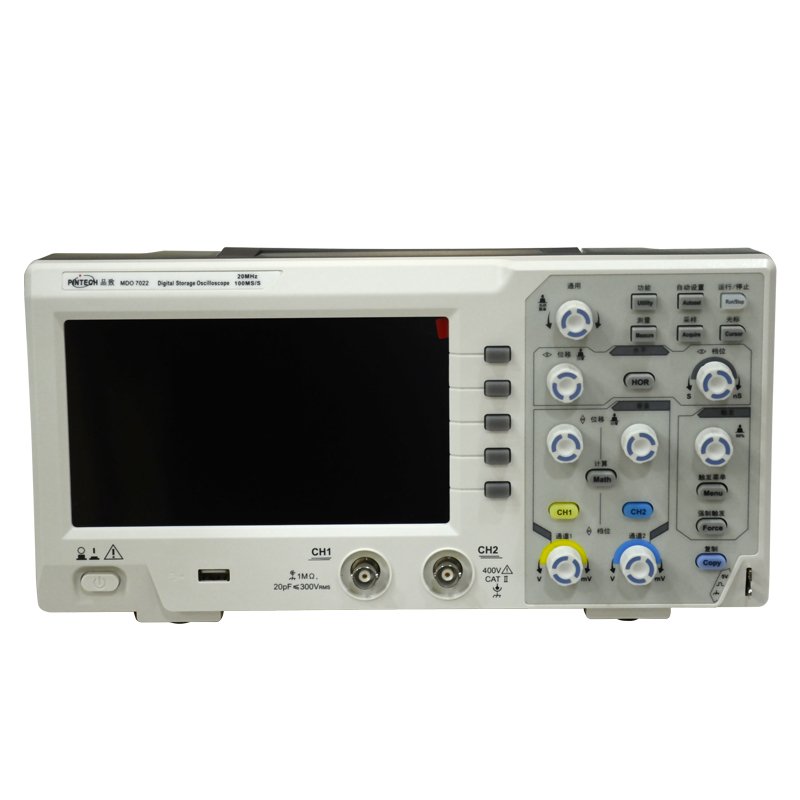

Product Name : MDO 7022 2 channels (20MHz,100MS/s) portable oscilloscope Short Description : + 20MHz bandwidth + 2 channels + 100MS/s Sample Rate + ultra-thin body-design, less space accommodation + 7 inch high resolution LCD (800 × 480 high resolution) +SCPI communication function, labview communication function + 30 kinds of measure value, can display by one key

Pintech MDO 7022 Specification

Model MDO 7022
Bandwidth 20MHz
Sample Rate 100MS/s
Horizontal Scale (s/div) 5ns/div - 1000s/div, step by 1 - 2 - 5
Rise time(BNC typical) =17.5ns
Channel 2
Display 7" color LCD, 800 x 480 pixels
Input impedance 1MO ± 2%, and 20pF±5pFin parallel
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max. Input voltage 400V (PK - PK) (DC+AC, PK - PK)
DC gain accuracy ±3%
Record length 10K
DC accuracy (average) Average=16:±(3% reading + 0.05 div) for ?V
Probe attenuation factor 1X, 10X, 100X, 1000X
LF response(AC,-3Db) =10Hz (BNC, -3dB)
Sample rate/relay time accuracy ±100ppm
Interpolation sin (x) / x
Interval(?T) accuracy(full bandwidth) Single : ±(1sample interval time+ 100ppm x reading + 0.6ns), Average >16 : ±(1sample interval time + 100ppm x reading + 0.4ns)
Input coupling DC, AC , GND
Vertical accuracy (A/D) 8 bits (2 channels simultaneously)
Vertical sensitivity 5mV/div - 5V/div (at input)
Trigger type Edge, Video
Trigger mode Auto, Normal, and Single
Trigger level ±5 divisions from screen center
Line / field frequency(Video) NTSC,PAL and SECAM standard
Cursor measurement ?V,?T,between cursors
Auto measurement Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A?B?,delay A?B?,+Pulse count,rise edge count,fall edge count
Waveform Math +, -, x, ÷, invert, FFT
Waveform storage 16 wavefaves
Lissajous figure Bandwidth Full bandwidth
Phase difference ±3 degrees
Communication interface USB host, USB device
Frequency meter Available
Power supply 100V - 240V AC, 50/60Hz, CAT II
Size (LxHxW) 301 x 152 x 70 mm
Weight 1.1kg
