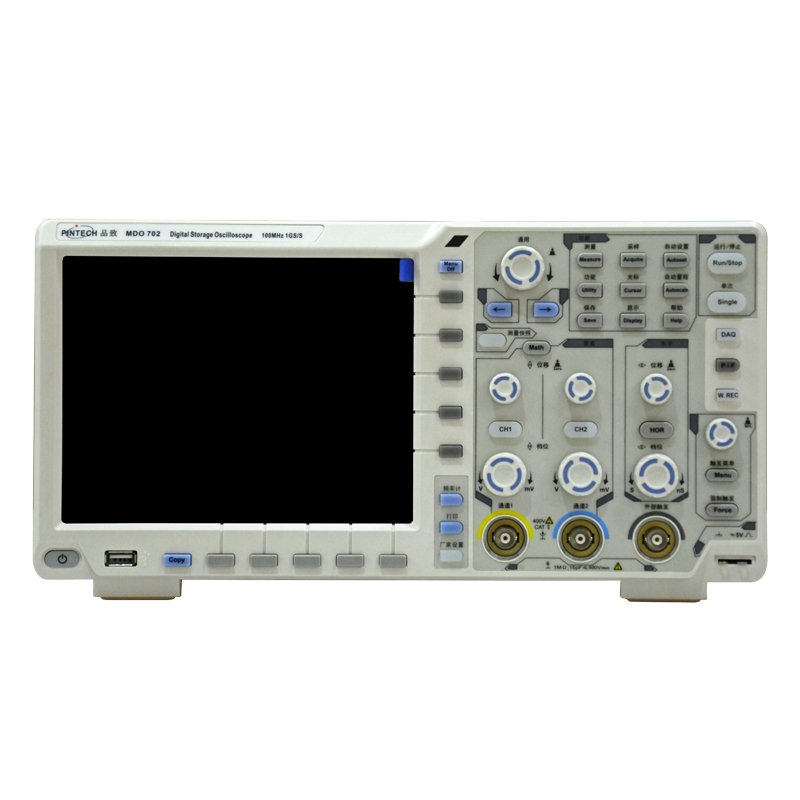

Pintech MDO 702 dual channel 100MHz bench oscilloscope

Pintech MDO 702



Product Introduction
Product Name : MDO 702 dual channel 100MHz bench oscilloscope Short Description : + ultra-thin body-design, less space accommodation multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more + VGA port - better solution for video expansion, and teaching demonstration + 8 inch 800 x 600 high resolution LCD + optional multi-point touch screen, more user-friendly operation experience + functions as data logger, and multimeter with data logging function

Pintech MDO 702 Specification

Model MDO 702
Bandwidth 100MHz
Sample Rate 1GS/s
Vertical Resolution(A/D) 8 bits
Record length 40M
Waveform refresh rate 75,000 wfms/s
Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise time(BNC typical) =3.5ns
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels TFT LCD
Input impedance 1MO±2%,and 15pF±5pF parallel
Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max. Input voltage 1MO = 300Vrms; 50O = 5Vrms
DC gain accuracy ±3%
DC accuracy (average) average=16:±(3% +0.05div) for ?V
Probe attenuation factor 0.001X - 1000X, step by 1 - 2 - 5
LF response(AC,-3Db) =10Hz(BNC)
Sample rate/relay time accuracy ±1ppm
Interpolation (sinx) / x,x
Interval(?T) accuracy(full bandwidth) Single : ±(1 sample interval time+1ppm x reading+0.6ns); average>16:±(1sample interval time+1ppm x reading+0.4ns)
Input coupling DC, AC, GND
Vertical sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232, CAN
Trigger mode auto, normal, single
Vertical range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
Line / field frequency(Video) NTSC,PAL and SECAM standard
Cursor measurement Voltage difference between cursor(?V),time difference between cursor(?T),Voltage difference between cursor(?V)and time difference between cursor(?T),auto cursor
Auto measurement Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A?B?,delay A?B?,+Pulse count,rise edge count,fall edge count
Waveform Math +, -, ×, ÷, FFT
Waveform storage 100 waveforms
Lissajous figure bandwidth Full bandwidth
Phase difference ±3 degrees
Connector USB host, USB device,USB port for Pict Bridge,trig out(P/F), LAN, VGA(optional)
Frequency counter available
Power supply 100V - 240V AC, 50/60Hz, CAT II<15W
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension 340mm(L)x177mm(H)x90mm(W)
Device Weight 2.6kg
