PicoScope Oscilloscope Software - XY Oscilloscope

The XY oscilloscope mode plots one channel against another on the screen. This plot could be the I-V curve of a component such as a capacitor, inductor or diode, or a Lissajous figure showing the phase difference between two or more periodic waveforms.

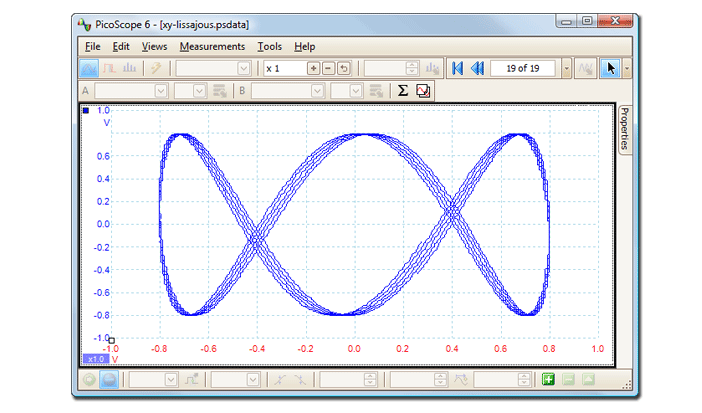

PicoScope 6 XY Mode


Related Links

PicoScope 6 Software  |  PC Oscilloscope





(All trademarks acknowledged) E. & O. E.

The XY oscilloscope mode is also capable of more advanced operations such plotting a math channel against a reference waveform, or plotting multiple channels on the Y axis against a single channel on the X axis.

With traditional CRT based oscilloscopes the XY mode was often a cause of concern: if there was a complete loss of signal the CRT’s beam would strike a small spot, risking buring the phosphor and damaging the scope. With your PicoScope PC based oscilloscope this concern is eliminated.
